What Is 4 Axis CNC Machining? Process, Benefits, and Comparison Guide

4 axis CNC machining is a manufacturing process where a cutting tool moves along the standard X, Y, and Z linear axes while the workpiece also rotates on a fourth axis, called the A axis. That rotation lets the machine reach multiple sides of a part in a single setup, without an operator stopping the cut to re-clamp or reposition anything.

If you've ever quoted a part that needed features on three or four faces, you know the pain. On a three axis CNC mill, every new face means a new fixture, a new alignment, and a new chance for error. A 4 axis CNC machine removes that bottleneck. The part spins to the tool instead of the other way around. Fewer setups, tighter tolerances between features, and faster cycle times.

According to Technavio, the global CNC machine tools market is set to grow by USD 23.10 billion between 2025 and 2030, at a 5.5% CAGR. Much of that growth comes from manufacturers adopting multi-axis equipment, including 4 axis machining centers, to handle more complex part shapes without driving up production cost.

This guide covers what you need to know: how the fourth axis works, indexed vs continuous operation, a head-to-head comparison of 3 axis vs 4 axis vs 5 axis, real-world uses, materials, costs, and design tips for getting the most out of four axis machining.

How Does a 4 Axis CNC Machine Work?

A four axis CNC machine follows the same basic workflow as any CNC mill: CAD design, CAM toolpath generation, machine setup, cutting, and finishing. The difference is what happens during the cut. While the spindle moves the tool through X (left-right), Y (front-back), and Z (up-down), the workpiece can also rotate around the X axis on a rotary table or chuck. That's the 4th axis.

Think of it like a rotisserie. The chicken (your part) rotates while the heat (the cutting tool) stays in position. The tool reaches every side without anyone flipping the chicken by hand.

The A Axis Explained

In CNC terms, the linear axes are X, Y, and Z. Rotary axes follow the same order: A rotates around X, B rotates around Y, and C rotates around Z. A CNC with 4th axis adds the A axis, a motor-driven rotary unit bolted to the machine table. The workpiece is gripped in a chuck on one end and supported by a tailstock on the other, much like a lathe.

This setup gives the cutter access to four sides of a boxy part, or a full 360 degrees of a cylindrical part, without reclamping. Features on different faces, such as holes, pockets, slots, and contours, stay perfectly lined up because the part never leaves the fixture.

Indexed (3+1) vs Continuous 4 Axis Machining

Not all 4 axis CNC work is the same. There are two modes, and the difference matters.

Indexed 4 axis machining (also called 3+1) rotates the part to a set angle, locks it in place with a brake, then runs standard 3 axis cutting on that face. Once the cuts are done, the brake releases, the part turns to a new angle, and the process repeats. This mode is simpler to program and works well for parts that need features on several flat faces, like a housing with holes on four sides.

Continuous 4 axis machining is the real upgrade. Here, the A axis rotates while the X, Y, and Z axes move at the same time. All four axes are in motion at once. This is what you need for helical features, cam lobes, spiral grooves, and curved surfaces that change shape around the circumference of the part.

Continuous mode needs more advanced CAM software and a controller that can coordinate four axes at once. But for the right parts, it's the only way to get the geometry done in a single operation.

3 Axis vs 4 Axis vs 5 Axis CNC Machining: What's the Difference?

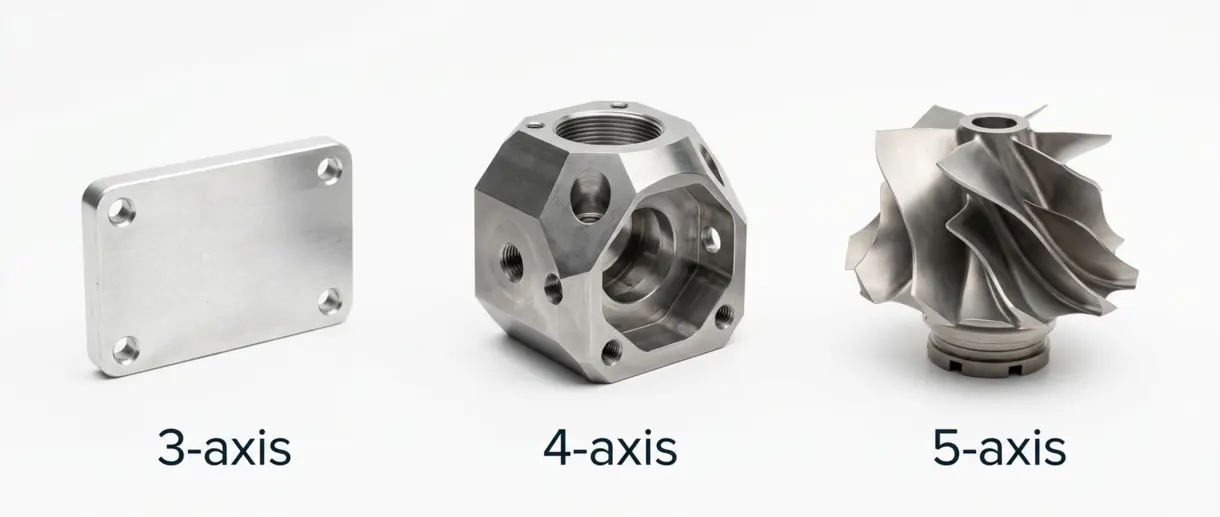

The core difference between these three machine types is how many directions the tool and workpiece can move relative to each other. More axes means more complex shapes are possible, but also higher machine cost and harder programming. Here's a direct comparison.

A 3 axis machine handles most simple milling jobs: flat profiles, drilled holes, slots, and pockets on a single face. It's the most affordable option and the fastest for straightforward parts. But the moment your part has features on a second, third, or fourth face, you're looking at multiple setups, extra fixtures, and the tolerance drift that comes with reclamping.

A 4 axis CNC mill solves that by rotating the part to expose each face without breaking the setup. For parts with angled holes, side pockets, or cylindrical features, it's the sweet spot of capability and cost.

A 5 axis CNC machine goes further, with two rotary axes moving at the same time. It's essential for compound curves and organic shapes like turbine blades, aerospace impellers, and medical implants, but the hourly rate and programming time are much higher. We wrote a full breakdown in our guide to 5 axis CNC machining. To see the full range of options under one roof, visit our custom CNC machining hub.

What Are the Benefits of 4 Axis CNC Machining?

Fewer setups, faster production. The biggest win is cutting out manual re-fixturing. A part that needs four setups on a three axis CNC mill can often be finished in one setup on a four axis CNC. That alone can cut cycle time by 30 to 50% on multi-sided parts.

Tighter tolerances between faces. Every time you remove and reclamp a workpiece, you add positional error. On a 4 axis machining center, the relationship between features on different faces is locked in by the rotary axis. Meco holds ±0.01 mm accuracy on 4 axis work, with general tolerances per ISO 2768 and geometric dimensioning per ASME Y14.5.

Better surface finish. Continuous rotation gives smoother tool engagement, especially on curved or cylindrical surfaces. Less vibration and steadier chip load mean finer surface quality, usually Ra 0.4 to 3.2 µm depending on the material and strategy.

Complex shapes without compromise. Helixes, cam lobes, angled holes, side pockets, and wrap-around contours are straightforward on a four axis CNC milling machine. On a 3 axis machine, some of these features are simply impossible.

Lower total cost for the right parts. The hourly rate for a CNC 4 axis machine is higher than a 3 axis. But once you factor in fewer setups, lower fixture costs, fewer scrapped parts from realignment errors, and shorter lead times, the total project cost often comes out lower.

What Types of 4 Axis CNC Machines Exist?

4 Axis CNC Milling Machines

The most common type. A vertical or horizontal CNC milling machine 4 axis adds a rotary table or trunnion to a standard mill. Vertical machines (spindle points down) are the workhorse for most job shops. Horizontal machines (spindle points sideways) are great at clearing chips on deep pocket work and tombstone fixtures that hold several parts for batch production. Learn more on our CNC milling service page.

4 Axis CNC Lathes

A 4 axis lathe adds a second axis to a turning center, usually Y axis travel or a sub-spindle. This lets you mill, drill, and cut off-center features on a turned part without moving it to a separate machine. It's common for shafts, fittings, and threaded parts that need cross-holes or flats. See our CNC turning services for related work.

4 Axis CNC Routers

A 4 axis CNC router is used mostly in woodworking, foam cutting, and large-format composite machining. The rotary axis spins long stock (like table legs or cylindrical molds) while the router carves 3D profiles. Industrial metal-cutting routers exist too, but they're less common than dedicated milling machines for precision work.

What Industries Use 4 Axis CNC Machining?

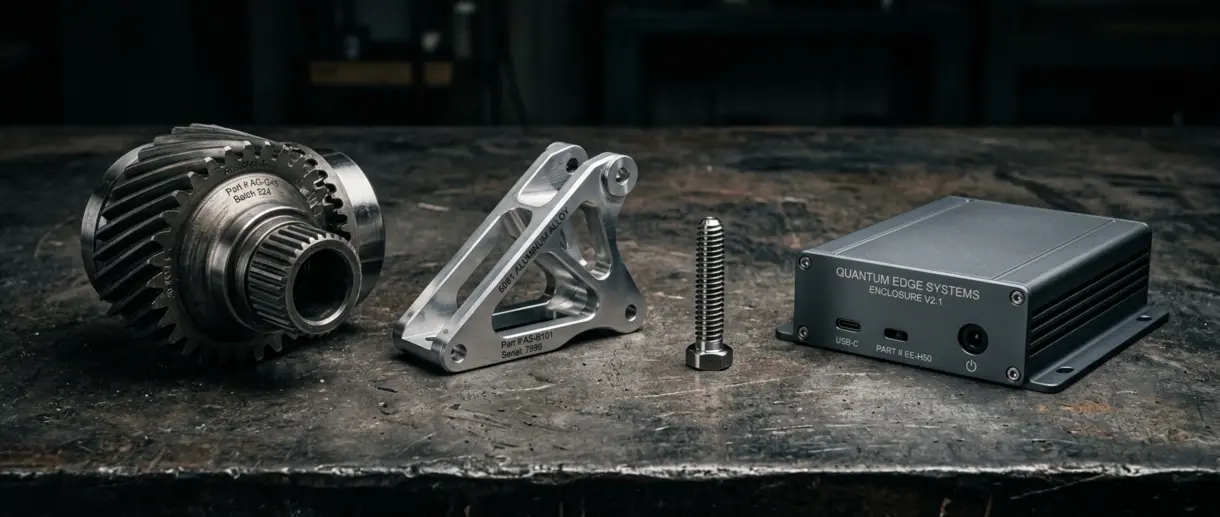

4 axis machining shows up anywhere parts need features on multiple faces or have rotational geometry. Here are the industries that rely on it most. You can see the full list on our capabilities overview.

Automotive: Gearbox housings, engine brackets, suspension knuckles, and EV battery tray parts. Automotive parts manufacturing needs high-volume repeatability with PPAP documentation, exactly the kind of program where cutting out setups pays off at scale.

Aerospace: Engine mounts, structural brackets, avionics enclosures, and landing gear fittings. Aerospace manufacturing calls for full traceability (lot and serial tracking, material certs) and NDT inspection, all of which Meco provides as standard.

Medical: Surgical instruments, orthopedic implant parts, and diagnostic device housings. Tight tolerances and biocompatible materials (titanium, 316L stainless) make four axis CNC the right choice for parts that need precision on more than one face. See our work in medical equipment manufacturing.

Electronics and Telecom: RF enclosures, heatsinks with fin arrays, connector housings, and rack-mount chassis. Machining pockets and mounting holes on all four sides of an enclosure in one setup keeps cost down on mid-volume runs.

Industrial and Heavy Equipment: Hydraulic valve bodies, pump housings, manifolds, and structural weldment interfaces. These parts are often large, heavy, and costly to re-fixture, which makes single-setup 4 axis machining a clear win.

What Materials Can Be Machined on a 4 Axis CNC?

A 4 axis CNC machine handles the same materials as any CNC mill. The axis count changes what geometry you can cut, not what material you can cut it from. Here's what Meco machines on 4 axis equipment every day.

After machining, most parts go through surface finishing: anodizing for aluminum, zinc or nickel plating for steel, and powder coating for looks and corrosion protection. Meco handles finishing in-house, so the part moves from the 4 axis machine to the coating line without leaving the facility. Not sure which material fits your part? Our guide to the best materials for CNC machining breaks down machinability and cost.

How Much Does 4 Axis CNC Machining Cost?

Hourly rates for a 4 axis CNC mill usually fall between $60 and $120 per hour in North America, depending on machine size, material, and the tolerances you need. That's roughly 20 to 40% more than a standard 3 axis mill, but the lower setup count usually brings the total part cost down, not up.

Here's what drives cost on a 4 axis CNC machining job:

• Material: Titanium and Inconel cost more to cut than aluminum or brass. Tool wear is the main factor.
• Complexity: Continuous 4 axis toolpaths take longer to program and verify than indexed operations.
• Tolerances: Holding ±0.01 mm costs more than ±0.05 mm. Tighter specs mean slower feed rates and more inspection time.
• Volume: Setup cost is spread across the quantity. A 10-piece prototype run costs more per part than a 10,000-piece production order.
• Finishing: Anodizing, plating, or painting adds cost downstream.

For a deeper look at CNC pricing, including hourly rates, tooling costs, and DFM strategies that cut cost by 15 to 30%, read our full guide on how much CNC machining costs. For what the machines themselves cost to buy, our CNC machine costs breakdown covers everything from desktop units to production-grade machining centers. And if you're pricing a finished metal part across processes, see our complete metal part pricing guide.

Meco delivers DFM feedback and detailed quotes in under 24 hours. If 4 axis is overkill for your part, we'll tell you, and route it to a 3 axis machine to save you money. Request a quote to get started.

When Should You Use 4 Axis Instead of 3 Axis?

Not every part needs a fourth axis CNC machine. Here's a simple five-question checklist. If you answer "yes" to two or more, 4 axis is probably the right call.

We recommend 4 axis as the default for any part that needs work on three or more faces. The setup time savings alone justify it on runs as small as 25 pieces in most cases. For parts with compound curves or organic 3D surfaces that change in two rotational directions, you'll want to step up to 5 axis CNC machining instead.

Still weighing milling against turning for your part? Our guide to CNC milling and turning walks through how to pick the right process before you commit to an axis count.

Design Tips for 4 Axis CNC Parts

Getting the most out of a CNC 4th axis starts at the design stage. A few DFM (Design for Manufacturability) choices early on can shave 20 to 30% off your machining cost and lead time.

Group features onto the A axis rotation plane. In indexed mode, all angled features must share the same rotation axis. If your part has features at different compound angles, it may need a 5 axis machine, or several indexed setups that reduce the 4 axis advantage. Design around a single rotation axis whenever you can.

Keep critical features in the same clamping. The whole point of 4 axis is keeping faces aligned. Put the tightest-tolerance features on faces the cutter can reach in one setup, so the machine can hit them all without reclamping.

Design for chip clearance. On cylindrical parts, deep slots and narrow pockets can trap chips and cause re-cutting damage. Add draft angles or relief features where you can, so chips fall away from the cut.

Set tolerances based on function, not habit. Not every dimension needs ±0.01 mm. Over-tolerancing slows the machine down because it has to run slower to hold tighter specs. Tolerance the features that matter and relax the rest. Meco's engineers flag this during DFM review, and it's included with every quote.

If you want engineering help before your drawings are final, Meco's R&D engineering team can optimize your part for 4 axis production from the concept stage.

Specifications and Tolerances for 4 Axis CNC Machining

Here are the specifications Meco holds on 4 axis CNC machining work, verified by CMM inspection to ±0.002 mm measurement precision.

Meco's custom CNC machining capabilities span 3 axis through 5 axis milling, turning, drilling, and tapping, all under one roof at IATF 16949:2016 certified facilities in Thailand (20,000 m²) and China (16,000 m²). U.S.-based engineering support handles DFM review and program management across time zones.
