Industrial Parts Manufacturing Services
Meco delivers heavy-duty OEM industrial components from prototype to volume production, coordinating CNC machining, casting, forging and stamping with heat treatment, finishing and assembly.
- 30+ YearsTurnkey OEM manufacturing
- ±0.005 mmPrecision CNC & CMM accuracy
- 40+ ProcessesMetal, plastic & sub-assembly
- 24 HoursQuote & DFM response time
Why Industrial OEMs Choose Meco
Meco consolidates multi-process metalworking, thermal treatment, protective coatings and documented inspection under one accountable supply chain.
Custom Industrial Manufacturing Processes
Eight in-house metalworking and assembly capabilities for prototype and high-volume industrial hardware.
5-Axis CNC Machining
Valve bodies, hydraulic manifolds and precision housings milled to ±0.005 mm (ISO 2768).
5-Axis CNC Machining →
Die & Gravity Casting
High-pressure aluminum and zinc motor housings, pump casings and heat-dissipating enclosures.
Die Casting Services →
Hot & Cold Forging
Grain-aligned alloy steel gears, drive shafts, flanges and high-load structural couplings.
Industrial Forging →
Metal Stamping
Progressive-die and deep-drawn steel, stainless and aluminum brackets, shields and plates.
Metal Parts Stamping →
CNC Turning & Mill-Turn
Concentric shafts, pistons, threaded fittings, pins and bushings turned at production speeds.
CNC Turning Services →
Laser Cutting & Welding
Fiber-laser cut plate, CNC press-brake forming and certified MIG/TIG structural weldments.
Laser Cutting Services →
Surface Finishing
Anodizing, zinc plating, electroless nickel, passivation, e-coating and powder coating.
Surface Finishing →
Mechanical Assembly
Bearing press-fits, fastener installation, seal assembly, pressure testing and kitting.
Mechanical Assembly →Custom Industrial Parts by Machinery System
Precision metal components engineered for continuous-duty cycles, high operating pressures and harsh factory environments. For earthmoving and large-tonnage assemblies, see heavy equipment manufacturing.
Pumps, Valves & Fluid Power
Pressure-rated valve bodies, impellers, bonnets and hydraulic manifolds investment cast and 5-axis CNC finished from 316 stainless and ductile iron.
Electric Motors & Drive Housings
Finned aluminum die-cast motor housings, end bells, stator frames and gearbox casings machined for bearing bore concentricity.
Gears, Shafts & Power Transmission
Forged, carburized and CNC-ground alloy steel gears, splines, drive shafts and sintered powder metal bushings.
Automation, Robotics & Motion Control
Lightweight 6061/7075 aluminum robot arm links, linear stage plates, sensor mounts and end-of-arm tooling machined to ±0.005 mm.
Machine Frames, Weldments & Guards
Heavy structural steel bases, laser-cut safety guards and NEMA-style sheet metal control cabinets built via fabrication and welding.
Heat Exchangers & Thermal Hardware
High-conductivity copper busbars, extruded aluminum heat sinks, liquid cold plates and thermal transfer blocks.
Industrial Process & Production Volume Guide
Select the most cost-effective manufacturing route based on your component geometry, tolerance requirements and annual order volume. Meco bridges prototype machining directly into customer-owned production tooling.
| Component Type | Recommended Process | As-Processed / Machined Tolerance | Economic Volume & Tooling |
|---|---|---|---|
| Motor & Gearbox Housings | High-Pressure Die Casting + CNC post-milling | ±0.05 mm cast / ±0.01 mm CNC bores | 3,000 – 500,000+ pcs (100% customer-owned dies) |
| Valve Bodies & Impellers | Investment Casting or 5-Axis CNC | ±0.10 mm cast / ±0.005 mm seats | 1 – 500 pcs (CNC) / 500+ pcs (cast + CNC) |
| Gears, Shafts & Couplings | Hot/Cold Forging + CNC Turning | ±0.005 mm ground journals (ISO 286) | 500 – 100,000+ pcs (forged) / 1 – 500 pcs (bar stock) |
| Bushings, Cams & Sprockets | Powder Metallurgy (Sintering) | ±0.015 mm net-shape repeatability | 10,000 – 1,000,000+ pcs (minimal scrap) |
| Brackets, Shields & Contacts | Progressive Die Stamping | ±0.05 mm formed profile accuracy | 5,000 – 1,000,000+ pcs (high-speed stamping) |
| Machine Frames & Cabinets | Laser Cutting, Bending & Welding | ±0.15 mm cut / ISO 13920 welded | 1 – 5,000 pcs (no hard tooling required) |
Industrial Metals & Alloy Specifications
Meco machines, casts, forges and forms commercial-grade industrial alloys to ASTM, DIN, JIS and ISO specifications, complete with certified heat treatment.
| Material | Common Industrial Grades & Heat Treatments | In-House & Coordinated Processes |
|---|---|---|
| Carbon & Alloy Steel | 1018, 1045, A36, Q235, 4140, 4340, 8620, 20CrMnTi, 52100. Heat treatment: quenching, tempering, induction hardening, carburizing, nitriding, QPQ. | CNC machining, hot/cold forging, sand & investment casting, stamping, laser cutting, structural welding |
| Stainless Steel | 304, 304L, 316, 316L, 17-4 PH, 410, 420, 440C, 2205 Duplex for corrosive fluid, food-grade and chemical processing equipment. | 5-axis CNC milling, investment casting, CNC turning, sheet metal stamping, laser cutting, TIG welding, passivation |
| Aluminum Alloys | 6061, 6082, 7075, 5052, 2024 (wrought/extruded); ADC12, A380, A360 (high-pressure die cast); A356, ZL101 (sand/gravity cast). Tempers: T5, T6, T651. | CNC machining, high-pressure die casting, gravity & sand casting, custom extrusion, stamping, anodizing |
| Cast & Ductile Iron | Ductile Iron (GGG40 / 60-40-18, GGG50 / 65-45-12) and Gray Iron (GG20, GG25 / Class 30 & 40) for vibration damping and pressure housings. | Resin sand casting, shell mold casting, custom casting, secondary CNC boring, face milling, hydrostatic leak testing |
| Brass, Bronze & Copper | C36000 (Free-Cutting Brass), C93200 (Bearing Bronze), C95400 (Aluminum Bronze), C11000 (ETP Copper), C17200. | Swiss & CNC turning, sintered bushings, hot forging, busbar stamping, silver/tin/nickel plating |
| Zinc & Titanium Alloys | Zamak 3, Zamak 5, ZA-8 (zinc die cast); Titanium Grade 2, Grade 5 (Ti-6Al-4V) for severe chemical and marine duty. | Hot-chamber zinc die casting, precision 5-axis CNC machining, metal 3D printing, vibratory deburring |
Meco coordinates thermal processing and protective coatings inside one program. Explore heat treatment and surface finishing.
Ready to Quote Your Industrial Component?
Send us your 3D CAD models and 2D drawings for pricing and a DFM review within 24 hours.
Industrial Surface Finishes & Coatings
Corrosion protection, wear resistance and salt-spray durability applied to your drawing specification.
| Finish | Compatible Materials | Standard Used |
|---|---|---|
| Anodizing (Type II & Type III Hardcoat) | Aluminum | MIL-A-8625 / ISO 7599 |
| Zinc & Zinc-Nickel Plating | Carbon & alloy steel, cast iron | ASTM B633 / ASTM B841 (trivalent passivate) |
| Electroless Nickel & Hard Chrome | Steel, stainless steel, aluminum, brass, copper | ASTM B733 / AMS 2406 / Customer specification |
| Powder Coating & E-Coating | Aluminum, steel, cast iron, zinc castings | ISO 2409 / ASTM D3359 (up to 1,000-hr salt spray) |
| Passivation & Electropolishing | Stainless steel | ASTM A967 / ISO 15730 |
| Black Oxide & Phosphate Coating | Carbon & tool steel | MIL-DTL-13924 / MIL-DTL-16232 (zinc/manganese phosphate) |
| Hot-Dip Galvanizing | Structural & fabricated steel | ASTM A123 / ISO 1461 |
Share your print callout or salt-spray hour requirement and we will verify the coating specification before quoting.
Industrial Quality Assurance & PPAP Documentation
Every industrial shipment is governed by Meco's IATF 16949:2016 quality system, with incoming alloy verification, in-process SPC and final inspection reports.
First Article Inspection (FAI)
Ballooned drawings and 100% dimensional verification of first off-tool or machined samples.
PPAP & Control Plans
Level 1–3 PPAP packages including process flow diagrams, PFMEA, MSA and control plans.
CMM & SPC Inspection
Automated CMM probing to ±0.002 mm with GD&T layout reports and Cpk capability tracking.
NDT & Pressure Testing
Ultrasonic, magnetic particle, dye penetrant, X-ray and hydrostatic pressure leak testing.
Full Lot Traceability
Serialized heat-lot tracking through casting, machining, heat treatment and final packaging.
Material Certs & CoA
EN 10204 3.1 mill test reports, spectrometer chemistry verification and hardness certs.
REACH & RoHS Compliance
Substance compliance declarations for raw metals, platings and industrial coatings.
Conflict Minerals (CMRT)
Standardized CMRT declarations verifying conflict-free 3TG smelter sourcing.
Industrial Parts Manufacturing FAQ
What quality certifications and inspection reports do you provide?
Meco's quality management system is certified to IATF 16949:2016 (which incorporates all ISO 9001:2015 requirements). Depending on your drawing callouts, shipments include First Article Inspection (FAI) reports, Level 1–3 PPAP packages, CMM dimensional data, EN 10204 3.1 mill test certificates, heat-treatment/finish certifications and NDT reports.
What tolerances can you hold on industrial castings, forgings and CNC parts?
We hold ±0.005 mm (±0.0002 in.) on precision CNC-machined bores, shafts and sealing surfaces, verified on temperature-controlled CMMs. For die-cast, investment-cast and forged parts, we combine net-shape forming tolerances (ISO 8062) with secondary CNC machining on critical GD&T datums.
Can you support low-volume prototypes before building production tooling?
Yes. There is no minimum order quantity (MOQ) for CNC-machined, laser-cut or 3D-printed industrial prototypes. Once your design is validated for serial production via die casting, investment casting, forging or stamping, we build the hard tooling and you retain 100% ownership of all dies and molds.
Do you provide heat treatment, surface finishing and mechanical sub-assembly?
Yes. Meco delivers ready-to-install components by managing carburizing, induction hardening, nitriding, anodizing, zinc plating, e-coating and powder coating, followed by bearing press-fitting, hardware installation and hydrostatic pressure testing under one purchase order.
Where are your factories and how do you mitigate tariff and supply chain risk?
Meco operates IATF 16949-certified manufacturing facilities in Thailand (20,000 m²) and China (16,000 m²), supported by U.S. engineering teams and corporate headquarters in Richmond Hill, Ontario, Canada. Dual-country production gives OEM buyers tariff flexibility and redundant capacity.
How fast can we get a quote and DFM review?
Meco replies within 24 hours of receiving your 3D CAD files (STEP, IGES), 2D drawings with tolerances, material/finish callouts and estimated order volume. See our CNC machining cost guide for tips on optimizing part cost.
From Prototype & FAI to Volume Production
Send 3D CAD files, 2D drawings with GD&T, alloy/hardness callouts, coating specs and target batch quantities.
Our engineers return pricing within 24 hours along with manufacturability feedback to reduce machining or tooling cost.
Machined parts go straight to first articles; for cast, forged or stamped parts, we fabricate tooling that you own 100%.
Before serial production, we deliver off-tool samples with First Article Inspection, CMM layout reports and EN 10204 3.1 mill certs.
Meco executes SPC-monitored runs, heat treatment, protective coatings, sub-assembly and worldwide shipping.
Industrial Manufacturing Guides

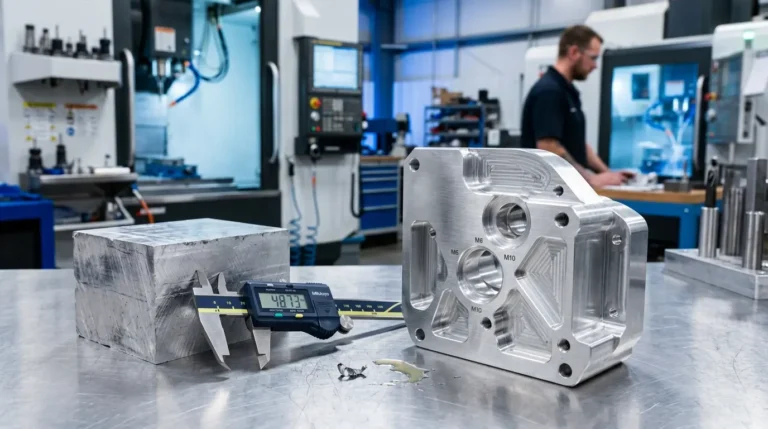

Custom Metal Part Pricing Guide
