Lighting Parts Manufacturing
Meco manufactures custom metal lighting components from prototype to volume production, coordinating die casting, extrusion, CNC machining and stamping with architectural finishing and assembly.
- 30+ YearsTurnkey OEM luminaire hardware
- 96–220 W/m·KThermal heat-sink alloys
- ±0.005 mmOptic, gasket & MCPCB machining
- 24 HoursQuote & DFM response time
Why Lighting Brands Choose Meco
Meco integrates thermal casting, precision CNC milling, architectural surface coatings and mechanical sub-assembly under one accountable supply chain.
Custom Lighting Manufacturing Processes
Eight in-house metalworking, thermal forming and finishing processes for architectural, commercial and outdoor luminaires.
Aluminum & Zinc Die Casting
High-pressure thin-wall LED housings, pin-fin heat sinks, street light bodies and Zamak trims.
Die Casting Services →
Extrusion & Cold Forging
6063-T5 linear LED profiles, extruded heat sinks and high-conductivity 1070 cold-forged pin arrays.
Aluminum Extrusions →
CNC Milling & Face Skimming
Flat MCPCB thermal interfaces (Ra ≤ 1.6 μm), IP gasket grooves and billet prototype housings.
Custom CNC Machining →
Sheet Metal & Stamping
Progressive-die stamped spring clips, recessed cans, troffer pans, reflectors and mounting brackets.
Metal Parts Stamping →
CNC Turning
Concentric downlight bezels, lens retaining rings, adjustable gimbals, standoffs and cable glands.
CNC Turning Services →
Laser Cutting & Forming
Burr-free LED driver enclosures, junction boxes, louver blades and custom luminaire chassis.
Laser Cutting Services →
Architectural Finishing
UV-stable powder coating, Type II/III anodizing, marine e-coating and reflective PVD finishes.
Surface Finishing →
Mechanical Assembly
Silicone gasket dispensing, tempered glass/optic installation, captive hardware and sub-assemblies.
Mechanical Assembly →Custom Lighting Parts by Luminaire System
Precision thermal, optical and structural metal components engineered for lumen maintenance, ingress protection (IP65–IP68) and architectural aesthetics.
Outdoor Street, Area & Floodlight Housings
Weather-sealed ADC12 and A380 die-cast cobra-head bodies, floodlight chassis and pole slip-fitters with 1,000-hour salt-spray coatings.
High-Bay, Industrial & Hazardous-Location
Heavy-duty cast and cold-forged UFO high-bay bodies, explosion-proof style enclosures and impact-resistant wire guards.
Architectural, Recessed & Track Downlights
CNC-turned and die-cast trim rings, anti-glare baffles, adjustable gimbal rings and track-head housings with zero-blemish cosmetic finishes.
LED Heat Sinks & Thermal Spreaders
Pin-fin die castings, 6063-T5 extruded linear profiles and C11000 copper thermal pads milled flat for low thermal resistance.

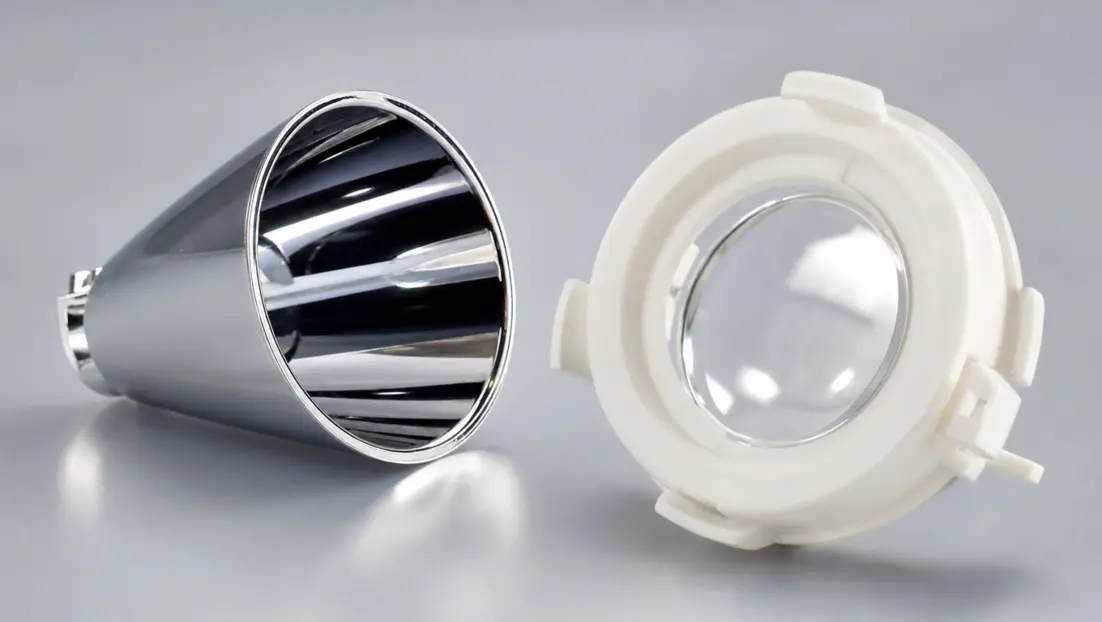

Reflectors, Optic Holders & Lens Retainers
Precision-formed aluminum reflectors, TIR lens holders and CNC-machined optical rings that lock beam angles in place.
Lighting Thermal & Process Selection Matrix
Compare thermal conductivity, flatness tolerances and economic order volumes across our core luminaire manufacturing processes. You retain 100% ownership of all custom dies and extrusion tooling.
| Lighting Component | Recommended Process | Thermal Conductivity & Tolerance | Economic Volume & Tooling |
|---|---|---|---|
| Outdoor & Downlight Housings | High-Pressure Die Casting + CNC face mill | 96–130 W/m·K (ADC12/AlSi10Mg); ±0.05 mm IP gasket grooves | 2,000 – 500,000+ pcs (customer-owned mold) |
| Linear Profiles & Finned Sinks | Aluminum Extrusion + CNC cut/drill | 180–205 W/m·K (6063-T5); 0.05 mm/100 mm MCPCB flatness | 500 – 100,000+ pcs (low-cost extrusion die) |
| High-Wattage Pin-Fin Sinks | Cold Forging (1070 Pure Al) | 220–226 W/m·K; 3D airflow pin arrays, Ra ≤ 1.6 μm base | 1,000 – 100,000+ pcs (forging die) |
| Bezels, Gimbals & Optic Rings | CNC Turning or Zamak Die Casting | ±0.005 mm lens seat concentricity; 0.8 mm thin walls in zinc | 1 – 1,000 pcs (CNC) / 3,000+ pcs (zinc die cast) |
| Troffers, Brackets & Clips | Progressive Die Stamping | ±0.05 mm hole-to-hole pitch; burr-free spring steel/sheet | 5,000 – 1,000,000+ pcs (progressive tooling) |
| Driver Boxes & Custom Chassis | Laser Cutting & CNC Press Brake | ±0.10 mm knockout & bend accuracy; UL-ready enclosures | 1 – 5,000 pcs (no hard tooling required) |
Lighting Metals & Thermal Alloy Specifications
Meco sources and processes certified casting, extrusion and sheet alloys engineered to maximize LED lumen maintenance, corrosion resistance and cosmetic finish quality.
| Material | Common Lighting Grades & Thermal Properties | In-House & Coordinated Processes |
|---|---|---|
| Die-Cast Aluminum | ADC12 (A383), A380, A360, AlSi10Mg, AlSi12 (96–140 W/m·K); A356-T6 for high-strength gravity/sand cast street and stadium housings. | High-pressure die casting, gravity casting, CNC MCPCB face milling, tapping, impregnation, powder coating |
| Wrought & Extruded Aluminum | 6063-T5, 6061-T6 (167–205 W/m·K) for linear profiles & machined bezels; 1070 / 1050 Pure Aluminum (220+ W/m·K) for cold-forged heat sinks; 1100 / 5052 for reflectors. | Custom extrusion, cold forging, 5-axis CNC milling, CNC turning, spinning, cosmetic anodizing |
| Zinc Alloys (Zamak) | Zamak 3, Zamak 5, ZA-8 (108–115 W/m·K) for ultra-thin walls (down to 0.8 mm), fine cosmetic details and long mold life (500,000+ shots). | Hot-chamber zinc die casting, automated deflashing, vibratory polishing, electroplating, architectural painting |
| Carbon & Spring Steel | SPCC / CRS 1008, 1018, Q235 for troffer housings, backplates & driver enclosures; 65Mn / 1075 Spring Steel for recessed torsion clips. | Progressive die stamping, fiber laser cutting, CNC bending, spot/MIG welding, zinc plating, e-coating |
| Stainless Steel | 304, 316, 316L for coastal/marine floodlights, inground well lights, underwater pool bezels, captive screws and safety cables; 301 spring clips. | Sheet metal stamping, laser cutting, CNC turning, investment casting, TIG welding, passivation, electropolishing |
| Copper & Brass | C11000 ETP Copper (388 W/m·K) for high-flux LED heat spreaders & busbars; C36000 / C26000 Brass for architectural landscape fixtures & glands. | CNC milling, Swiss turning, stamping, brazing, antique brushing, clear lacquer & nickel/tin plating |
Need help balancing thermal performance and unit cost? Explore our surface finishing and heat treatment capabilities.
Ready to Quote Your Lighting Component?
Send us your 3D CAD models and 2D drawings for pricing and a thermal/DFM review within 24 hours.
Architectural & Outdoor Lighting Surface Finishes
UV-stable architectural coatings, thermal-emissive anodizing and coastal marine corrosion protection finished to your RAL, Pantone or drawing specification.
| Finish | Compatible Materials | Standard & Lighting Application |
|---|---|---|
| Architectural Powder Coating | Aluminum, steel, zinc | AAMA 2604 / ISO 2409; UV-stable RAL/Pantone textures, matte black & high-reflectance white |
| Anodizing (Type II & III) | Extruded & wrought aluminum | MIL-A-8625; enhances radiative heat dissipation on LED heat sinks & architectural trims |
| Chromate Conversion (Alodine) | Die-cast & machined aluminum | MIL-DTL-5541F (RoHS trivalent); corrosion primer & bare electrical grounding pads |
| E-Coating + Marine Powder Coat | ADC12 / A380 aluminum, steel | ASTM B117 (1,000+ hr salt spray); dual-coat protection for street, area & coastal fixtures |
| Reflective Anodizing & Mirror PVD | Aluminum, stainless, brass | 90–95% specular/diffuse reflectance for reflectors, louvers & decorative bezels |
| Zinc Plating & Passivation | Carbon steel & stainless steel | ASTM B633 (zinc) / ASTM A967 (passivation) for mounting brackets, clips & hardware |
Specify your RAL/Pantone code, gloss level (GU) or salt-spray hours on your drawing and we will confirm the coating stack before quoting.
Lighting Quality Assurance & Inspection
Every lighting shipment is governed by Meco's IATF 16949:2016 quality system, verifying thermal flatness, IP sealing geometry and cosmetic finish consistency.
First Article Inspection (FAI)
Ballooned drawings and 100% dimensional verification of off-tool T1 samples before volume runs.
PPAP & Control Plans
Level 1–3 PPAP packages including process flow, PFMEA, MSA and capability studies.
CMM & MCPCB Flatness Checks
CMM verification to ±0.002 mm on optic seats and LED board thermal mounting surfaces.
IP Sealing & Salt-Spray Testing
Pressure/water-ingress checks for IP65–IP68 housings and ASTM B117 salt-spray validation.
Color, Gloss & Adhesion Control
Spectrophotometer Delta E (≤ 1.0), 60° gloss meter and ISO 2409 cross-hatch adhesion tests.
Material Certs & Thermal Alloy CoA
EN 10204 3.1 mill certificates and spectrometer chemistry reports verifying alloy conductivity.
Full Lot Traceability
Serialized batch tracking from raw ingot/billet through casting, machining, coating and kitting.
REACH, RoHS & CMRT Compliance
Full RoHS 3, EU REACH and conflict-free 3TG mineral declarations for commercial luminaires.
Lighting Parts Manufacturing FAQ
How do you optimize LED heat sinks and housings for thermal dissipation?
We match the alloy and process to your luminaire wattage: high-pressure die casting in ADC12 or AlSi10Mg (96–140 W/m·K) for integrated housings, 6063-T5 extrusion (200 W/m·K) for linear profiles, and 1070 pure aluminum cold forging (220+ W/m·K) for dense pin-fin arrays. We then CNC skim-mill the MCPCB mounting pad flat (0.05 mm per 100 mm, Ra ≤ 1.6 μm) to minimize thermal interface resistance.
Can you hold IP65–IP68 sealing tolerances on outdoor lighting enclosures?
Yes. For street, area, flood and inground fixtures, we CNC machine the silicone gasket channels, lens seats and cable-gland threads to ±0.01 mm, apply vacuum impregnation when required, and perform air-decay or hydrostatic ingress testing prior to shipment.
How do you control color and finish consistency across architectural lighting batches?
Architectural trims, baffles and bezels are checked against master color plaques using a digital spectrophotometer (holding Delta E ≤ 1.0) and a 60° gloss meter, alongside ISO 2409 cross-hatch adhesion and ASTM B117 salt-spray testing.
Can we prototype housings with CNC machining before investing in die-cast tooling?
Yes. There is no minimum order quantity (MOQ) for CNC-machined, sheet-metal or 3D-printed luminaire prototypes used for UL, DLC or thermal validation. When you scale to die casting, extrusion or stamping, we build the production tooling and you retain 100% ownership of all dies and molds.
Where are your factories and how do you mitigate lighting supply chain tariffs?
Meco operates IATF 16949:2016-certified manufacturing plants in Thailand (20,000 m²) and China (16,000 m²), supported by U.S. engineering teams and corporate headquarters in Richmond Hill, Ontario, Canada. Dual-country production gives lighting OEMs tariff flexibility and redundant capacity.
How fast can we get a quote and thermal/DFM review?
Meco replies within 24 hours of receiving your 3D CAD files, 2D drawings, alloy/RAL finish specifications and annual volume. See our CNC machining cost guide for tips on reducing part cost.
From Luminaire Prototype to Volume Production
Send 3D CAD files, 2D drawings with GD&T, alloy callouts, RAL/anodize finish codes and target batch quantities.
We reply within 24 hours with itemized pricing and DFM feedback on fin pitch, draft angles and MCPCB flatness.
Validate thermal and UL samples via CNC machining, then transition to die-cast, extrusion or stamping tooling you own 100%.
Before serial production, we deliver T1 samples with First Article Inspection, CMM reports and master finish plaques.
Meco manages casting, CNC skimming, architectural powder coating, gasket/optic sub-assembly and worldwide delivery.
