Sheet, Plate & Tube Laser Cutting

Precision Custom Metal Laser Cutting Services

We cut steel, stainless, aluminum, brass, and copper from 0.3 to 25 mm (0.012″ to 1.0″) with zero tooling cost.

  • Fiber & CO2 laser cutting to ±0.1 mm (±0.004″)
  • Turnkey under one roof
  • No MOQ
Custom laser cut metal parts and sheet metal blanks manufactured by Meco
Burr-free fiber laser-cut metal blanks, brackets, panels, and rotary-cut tubes.
  • ±0.1 mm (±0.004″)Laser cut profile accuracy
  • 0.3 – 25 mm0.012″ – 1.0″ sheet, plate & tube
  • 5 – 10 DaysZero-tooling prototype turnaround
  • IATF 16949:20161 to 1M+ parts with no MOQ
Beyond Flat Blanks

24-Hour Laser Cutting Quote

Our R&D engineering team reviews your files inside 24 hours to optimise nesting, kerf, and bend reliefs—delivering finished parts on one purchase order.

  • Sheet, Plate & Rotary Tube Cutting: We cut flat sheet, thick plate, and round, square, or rectangular tubing (miters, copes, and tab-and-slot self-jigging joints) while verifying exact decimal gauge thickness
  • One-Roof Bending, Welding & Hardware: Laser-cut blanks move directly to in-house CNC press brake & tube bending (±0.5°), AWS D1.1 welding, PEM insert installation, and sheet metal assembly
  • Laser-to-Stamping Crossover Pricing: Scaling past 5,000–10,000 units? We quote tool-less laser cutting alongside progressive die stamping so you see the exact breakeven volume

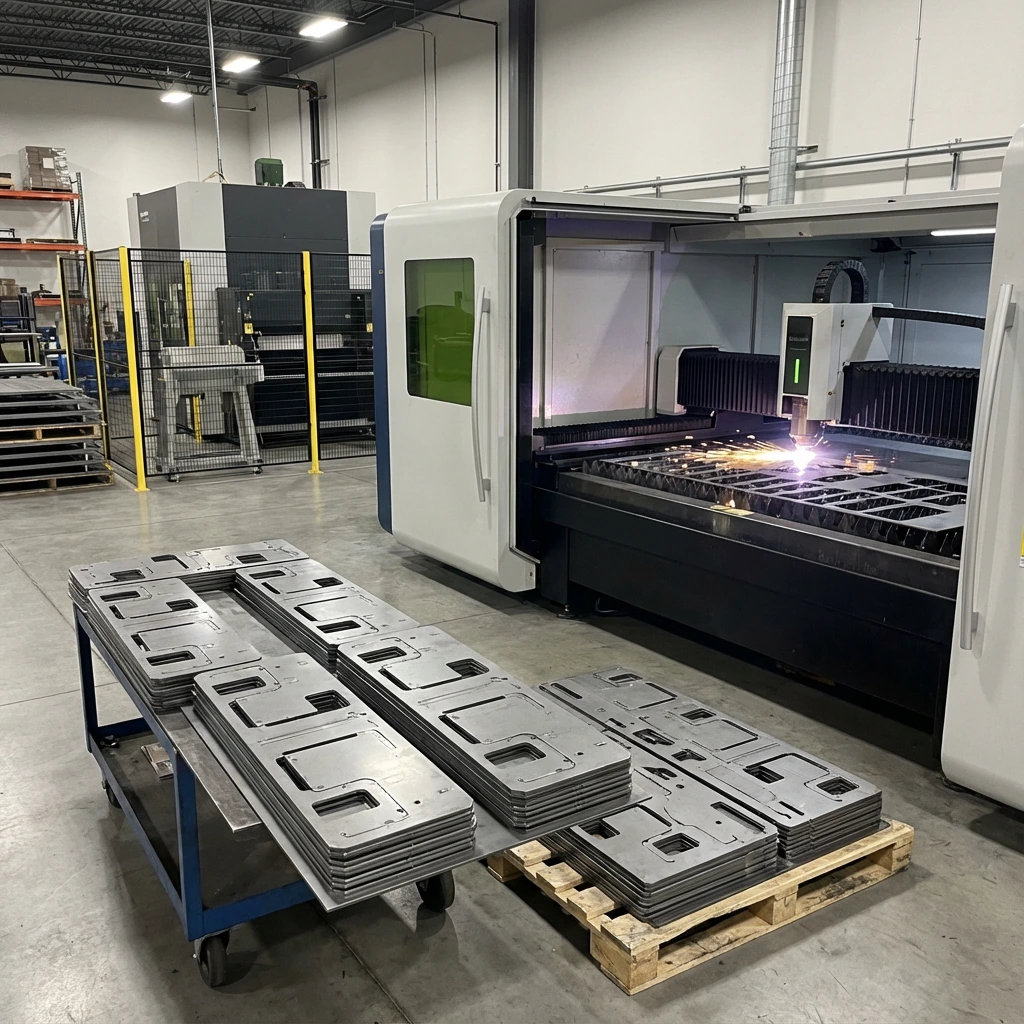

High-speed fiber laser cutting machine cutting precision sheet metal parts at Meco
High-speed fiber and CO2 laser cells cutting sheet, plate, and tube profiles with minimal heat-affected zone (HAZ).
Materials & Secondary Operations

Laser Cut Sheet Metal Grades, Forming & Surface Finishes

Stocked from 0.3 to 25 mm (0.012″ to 1.0″) in sheet, coil, and tube with EN 10204 3.1 mill certificates. Switch tabs to view stocked alloys or in-house forming and finishing.

Metal FamilyStocked GradesThickness & Min Bend RadiusTypical Laser-Cut Parts & Industries
Carbon & Mild SteelCRS 1008, 1010, 1018, SPCC, DC01; Hot Rolled A1011, Q235, SPHC; 10450.4–25 mm (0.5–1.5t bend radius)Mounting brackets, chassis plates, gussets, and heavy equipment frames
Stainless Steel304, 304L, 316, 316L, 430, 301 (annealed to half-hard)0.3–20 mm, N2 oxide-free cut (0.5–2.0t)Hygienic medical trays, food/marine fittings, appliance panels, shims
Aluminum3003-H14, 5052-H32, 6061-T4/T6, 6063, 70750.4–15 mm burr-free cut (0.5t on 3003/5052)Lightweight aerospace brackets, EV battery enclosures, 5G telecom heat sinks
Galvanized SteelASTM A653 G60, G90 & Galvannealed0.4–4.0 mm coated mill sheet (1.0–1.5t)Outdoor utility cabinets, HVAC panels, industrial guards, cable trays
Copper & BrassCopper C101, C110; Brass C260, C270, C360, C4640.3–8.0 mm fiber laser cut (0.5–1.0t)Power busbars, grounding straps, EMI shields, electronics contacts, lighting & furniture trim

Comparing bend radii or tensile strength across gauges? See our Sheet Metal Materials & Gauge Guide.

Secondary OperationCompatible MetalsIn-House Capability & Standard
CNC Press Brake & Tube BendingAll Sheet & Tube MetalsAir bending, bottoming, hemming, and rotary draw bending to ±0.5° (See CNC Bending)
AWS D1.1 Certified WeldingSteel, Stainless, AluminumRobotic & manual TIG, MIG, fiber laser, and spot welding
Hardware, Tapping & MachiningAll Laser-Cut BlanksPressed-in PEM nuts/standoffs, countersinking, CNC tapping, and CNC machining to ±0.01 mm
Surface Finishing & CoatingSteel, Stainless, Al, Brass, CuPowder coating, Type II/III anodizing, zinc plating (ASTM B633), passivation (ASTM A967), chromate (MIL-DTL-5541F), brushing & silk-screen (40+ Finishes)
Process Selection Matrix

Laser Cutting vs. Metal Stamping, Plasma Cutting & CNC Milling

Compare tolerances, thickness limits, tooling costs, and volume breakevens across our in-house sheet and plate cutting processes.

Comparison Factor Fiber & CO2 Laser Cutting Metal Stamping Plasma Cutting CNC Milling
Best For Complex flat profiles, rotary tubes, prototypes to medium runs Zero Tooling High-volume repeatable blanks, draws & formed clips Lowest Unit Cost Heavy structural carbon steel plate & weldment bases 3D pockets, counterbores, threads & tight datums
Dimensional Tolerance ±0.1 mm (±0.004″) / ISO 2768-mK ±0.05 mm (DIN 6930) ±1.0 to 2.0 mm (needs edge finishing) ±0.01 mm (±0.0004″)
Material Thickness 0.3 to 25 mm (0.012″ to 1.0″) 0.3 to 6 mm (0.012″ to 0.236″) Thick plate (6 mm+) Up to 1016 × 508 × 635 mm envelope
Tooling Cost & Lead Time None | 5–10 days High (hardened steel die) | 4–10 weeks None | 5–10 days None | 1–3 weeks
Ideal Volume 1 to 100,000 parts 10,000 to 10,000,000+ parts 1 to 5,000 parts 1 to 10,000 parts
Dedicated Service Current Service Explore Metal Stamping → Explore Fabrication → Explore CNC Milling →

Need Custom Laser-Cut Metal Parts or Sheet Metal Assemblies?

Upload your DXF, STEP, IGES, or PDF drawings for factory-direct pricing, signed NDA protection, and free DFM feedback in under 24 hours.

Get Your Laser Cutting Quote
Dimensional Control & DFM

Laser Cutting & Sheet Metal Fabrication Tolerances (ISO 2768-mK)

We hold ±0.1 mm (±0.004″) on laser-cut profiles and apply ISO 2768-mK as our default sheet metal standard unless your print specifies tighter GD&T.

Feature / OperationStandard ToleranceTight / Machined OptionEngineering & Stack-Up Note
Laser-Cut Edge & Hole Position±0.10 mm (±0.004″)±0.01 mm (CNC reamed/milled)Narrow fiber laser kerf with minimal heat-affected zone (HAZ)
Single Cut-to-Bend Feature±0.13 mm (±0.005″)±0.5° press brake angleKeep holes and PEM inserts clear of the inside bend radius
Multi-Bend Assembly Stack-UpUp to ±0.76 mm (±0.030″)0.13–0.25 mm mating gapAllow 0.05–0.13 mm extra clearance on powder-coated parts
Design FeatureRecommended MinimumWhy It Matters for Clean Laser Cutting & Forming
Minimum Hole & Slot Width≥ 1.0 × thickness (1t) or 1.0 mm (0.040″)Prevents pierce blowouts; smaller holes can be CNC drilled/reamed in-house
Hole-to-Edge & Bridge Width≥ 1.5t (thin sheet) to 2.0t (plate)Prevents thermal warping on narrow bridges between adjacent cutouts
Hole-to-Bend Distance≥ 2.0t + inside bend radiusKeeps laser-cut holes from pulling oval during CNC press brake forming
Bend Relief NotchesWidth ≥ 1.0t | Depth ≥ bend radius + 0.5tStops corner tearing on adjacent flanges and lowers forming tonnage
Class0.5 to 33 to 66 to 3030 to 120120 to 400400 to 10001000 to 2000
Fine (f)±0.05±0.05±0.10±0.15±0.20±0.30±0.50
Medium (m) Default±0.10±0.10±0.20±0.30±0.50±0.80±1.20
Coarse (c)±0.20±0.30±0.50±0.80±1.20±2.00±3.00
ClassUp to 10 mm10 to 50 mm50 to 120 mm120 to 400 mmOver 400 mm
Fine / Medium (f/m)±1°±0°30′±0°20′±0°10′±0°5′
Coarse (c)±1°30′±1°±0°30′±0°15′±0°10′
ClassUp to 1010 to 3030 to 100100 to 300300 to 10001000 to 3000
Class H0.020.050.100.200.300.40
Class K (Default)0.050.100.200.400.600.80
Class L0.100.200.400.801.201.60
Gauge10 ga12 ga14 ga16 ga18 ga20 ga22 ga
Carbon Steel3.42 mm (0.135″)2.66 mm (0.105″)1.90 mm (0.075″)1.52 mm (0.060″)1.21 mm (0.048″)0.91 mm (0.036″)0.76 mm (0.030″)
Aluminum2.59 mm (0.102″)2.05 mm (0.081″)1.63 mm (0.064″)1.29 mm (0.051″)1.02 mm (0.040″)0.81 mm (0.032″)0.64 mm (0.025″)
Stainless Steel3.57 mm (0.141″)2.78 mm (0.109″)1.98 mm (0.078″)1.59 mm (0.063″)1.27 mm (0.050″)0.95 mm (0.038″)0.79 mm (0.031″)
Quality Control

IATF 16949:2016 Quality, Flat-Pattern Scanning & CMM Inspection

Every laser cutting and sheet metal fabrication order runs under our IATF 16949:2016 and ISO 9001:2015 quality system with full coil and sheet heat-lot traceability.

StageWhat We CheckDeliverable
Incoming Stock (IQC)Alloy spectro-chemistry, decimal sheet/tube thickness, and A653 coating weightEN 10204 3.1 Certs
In-Process (IPQC)First-piece flat-pattern laser scan, burr/dross check, press brake angle, and weld setupFAI & SPC Reports
Final (FQC)CMM dimensional layout (±0.002 mm), thread/pin gauges, coating thickness, and fit testCMM, PPAP & APQP

Certified to IATF 16949:2016 and ISO 9001:2015 with AWS D1.1 qualified welding (note: Meco is not AS9100 or ITAR certified). Full PPAP, APQP, FAIR, SPC, RoHS, REACH, and Conflict Minerals (CMRT) packages supplied on request.

Standard Metrology & Verification

  • Optical Flat-Pattern & First Article Inspection (FAI)Verifies hole positions, slot widths, and outer contours against your 2D DXF/PDF drawing before releasing batch cutting.
  • CMM & Formed Feature Verification (±0.002 mm)Coordinate measuring machines inspect post-bent flanges, hole-to-bend datums, and automotive bracket geometries.
  • Clean-Cut Assist Gas & Burr ControlHigh-pressure nitrogen assist prevents edge oxidation on stainless and aluminum so parts enter welding or powder coating immediately.
  • Turnkey Box-Build & Assembly TestingLaser-cut enclosures are populated with PEM hardware, sub-assemblies, and box-build electronics before global shipment.
Engineering Guides

Laser Cutting, Sheet Metal Tolerances & Cost Resources

Practical engineering guides on sheet metal gauges, assembly stack-up tolerances, and fabrication pricing.

Swipe sideways to view all resource categories.

Frequently Asked Questions

What tolerances and material thicknesses can your laser cutters hold?

Our fiber and CO2 lasers cut sheet, plate, and tube stock from 0.3 to 25 mm (0.012″ to 1.0″) and hold ±0.1 mm (±0.004″) on cut profiles and hole locations. General features follow ISO 2768-mK, press brake bends hold ±0.5° (±0.13 mm single feature), and critical holes or datums can be finish-machined in-house on our CNC centers to ±0.01 mm.

How much does custom metal laser cutting cost, and when should I switch to stamping?

Laser cutting requires zero tooling investment. Typical laser-cut and bent brackets cost roughly $3 to $15 per piece depending on metal grade, thickness, and finish. Laser cutting is the most economical choice from 1 prototype up to 5,000–10,000 parts; past 10,000 units, progressive die stamping drops unit price to $0.30–$5.00. We gladly quote both side-by-side near the crossover volume.

What are your lead times and minimum order quantities (MOQ) for laser-cut parts?

We have no minimum order quantity (no MOQ)—scaling from 1 prototype to 1,000,000+ units. Itemised quotes and free DFM reviews are delivered in under 24 hours. Laser-cut prototypes and bent samples ship in 5 to 10 days, while welded and coated sheet metal assemblies ship in 2 to 3 weeks.

What is the heat-affected zone (HAZ), and how do you prevent edge oxidation?

The heat-affected zone (HAZ) is the narrow band of metal next to the laser kerf exposed to thermal energy. Our solid-state fiber lasers concentrate energy into a microscopic spot with high feed speeds, creating an ultra-narrow HAZ that preserves base-metal temper and weldability. We use high-pressure nitrogen assist gas on stainless steel and aluminum for bright, oxide-free edges ready for laser welding or powder coating.

Do you handle CNC bending, hardware installation, welding, and finishing in-house?

Yes. Meco operates 36,000 m² of owned manufacturing facilities in Thailand and China under IATF 16949:2016. We combine sheet and rotary tube laser cutting with CNC bending, PEM fastener insertion, AWS D1.1 welding (TIG, MIG, spot, laser), 40+ surface finishes, and mechanical assembly on one purchase order.

How to Get Started

1
Upload DXF, STEP or PDF Files

Submit 2D DXF/DWG flat patterns or 3D STEP/IGES models with decimal thickness, alloy, finish, and volume via our quote form.

2
24-Hour Quote & Free DFM Review

Receive factory-direct pricing in under 24 hours with bend-relief, kerf, and nesting optimisation notes.

3
Fast Prototypes in 5–10 Days

Approve laser-cut and formed first articles in 5 to 10 days (weldments in 2 to 3 weeks) with a full FAI report.

4
In-House Forming, Welding & Finishing

Parts are laser cut to ±0.1 mm, CNC bent, welded to AWS D1.1, plated or powder coated, and inspected via CMM.

✓
Scalable Production & Global Delivery

Reorder any quantity from 1 to 1M+ units with EN 10204 3.1 certs, SPC, and PPAP from our Thailand and China plants.

Send Your Files, Get a Reply in 24 Hours

Prototype or production, we review every request and reply with clear next steps.

  • Engineering feedback with every quoteWe review your files and reply with manufacturing feedback that can reduce cost.
  • Send what you haveUpload drawings or 3D models, or describe the part and we'll help define the rest.
  • Prototype to production, no minimum orderStart with one sample and scale to repeat production runs.
  • One partner, 40+ processesMachining, casting, forging, stamping, finishing and assembly, under an IATF 16949:2016 quality system.
