A surface finish chart helps compare roughness values used on drawings and inspection reports. The two conversions that carry real arithmetic are Ra µm × 39.37 = Ra µin and Ra µin × 0.0254 = Ra µm. So 125 µin = 3.175 µm, tabulated as 3.2 µm, or N8.
RMS (Rq) is another roughness parameter, not a unit conversion of Ra. The often-used 1.11 × Ra estimate depends on the surface profile. CLA is an older name for the arithmetic mean roughness. Rz and Rt must each be measured against their own limits.
North American drawings call out surface finish in microinches. European and Asian drawings use micrometers. Legacy prints use RMS or CLA. A single part crossing a global supply chain will hit at least two of those conventions before it ships.
This page is the detailed reference for translating between them. For a shorter lookup, the surface finish conversion chart keeps the most common preferred grades together. It covers the conversion table, the arithmetic behind it, the roughness formulas, how to decode a full drawing callout, and which standards actually apply in 2026.
It does not tell you which finish to specify. For which machining process reaches which finish, and what each step down the scale costs, and for what a 125, 63 or 32 finish actually means in service, we have dedicated guides.
A roughness figure is meaningful only when the parameter, unit and measurement method match. Keep the original drawing requirement alongside any converted value, especially when approving parts from suppliers working in different unit systems.
Key takeaways
- One real conversion factor. 1 µm = 39.37 µin. Use this for exact metric and imperial Ra unit conversion.
- RMS is not Ra. RMS ≈ 1.11 × Ra. The often-quoted 1.11 factor is only an estimate for some profiles.
- CLA is Ra. Same calculation, older British name. Read the number straight across.
- Rz and Rt are not derivable. Rz typically lands at 4 to 7 times Ra and Rt at 4 to 10 times Ra, but those are observations, not conversions.
- Check parameter definitions. Do not compare Rz and Rt without checking the standard edition and the evaluation conditions.
- N grades are fixed. N1 through N12, each locked to one Ra value. N8 is always Ra 3.2 µm.
- ISO 1302 is withdrawn. Superseded by ISO 21920-1:2021, though older prints still cite it.
- Cut-off length is part of the spec. The wrong λc changes the measured Ra on an unchanged surface.
Surface Finish Conversion Chart: Ra, RMS, CLA, Rz, Rt and N Grades
This table lists the N1 to N12 preferred Ra grades, approximate RMS figures and illustrative Rz and Rt ranges. Only Ra units can be converted by a fixed factor. Measurement settings must follow the standard specified on your drawing.

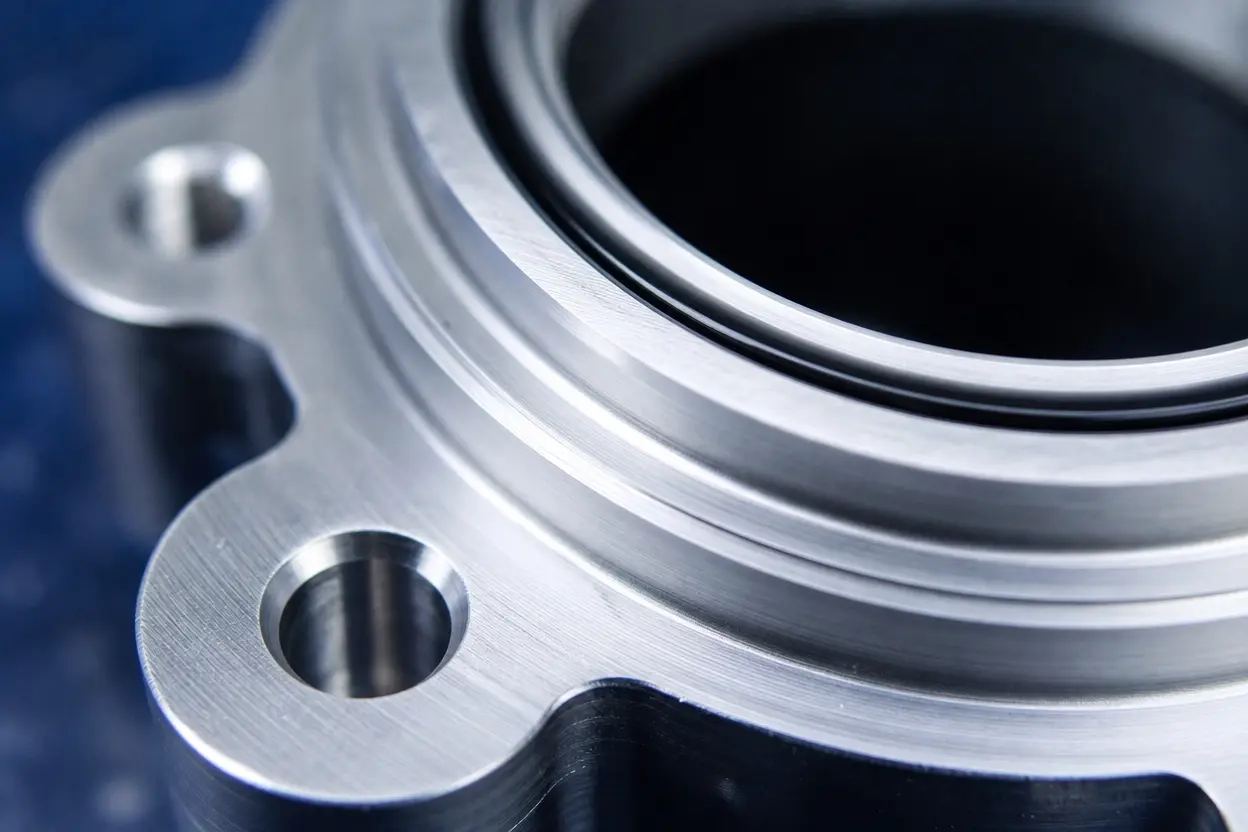

| Ra (µm) | Ra (µin) | RMS (µin) | CLA (µin) | Rz typical (µm) | Rt typical (µm) | N grade | Cut-off λc (mm) | Cut-off λc (in) |
|---|---|---|---|---|---|---|---|---|
| 0.025 | 1 | 1.1 | 1 | 0.10 to 0.18 | 0.10 to 0.25 | N1 | 0.25 | 0.010 |
| 0.05 | 2 | 2.2 | 2 | 0.20 to 0.35 | 0.20 to 0.50 | N2 | 0.25 | 0.010 |
| 0.1 | 4 | 4.4 | 4 | 0.40 to 0.70 | 0.40 to 1.0 | N3 | 0.8 | 0.030 |
| 0.2 | 8 | 8.9 | 8 | 0.80 to 1.4 | 0.80 to 2.0 | N4 | 0.8 | 0.030 |
| 0.4 | 16 | 17.8 | 16 | 1.6 to 2.8 | 1.6 to 4.0 | N5 | 0.8 | 0.030 |
| 0.8 | 32 | 35.5 | 32 | 3.2 to 5.6 | 3.2 to 8.0 | N6 | 0.8 | 0.030 |
| 1.6 | 63 | 69.9 | 63 | 6.3 to 11 | 6.4 to 16 | N7 | 0.8 | 0.030 |
| 3.2 | 125 | 138.8 | 125 | 12.5 to 22 | 12.8 to 32 | N8 | 2.5 | 0.100 |
| 6.3 | 250 | 277.5 | 250 | 25 to 44 | 25 to 63 | N9 | 2.5 | 0.100 |
| 12.5 | 500 | 555 | 500 | 50 to 88 | 50 to 125 | N10 | 8 | 0.315 |
| 25.0 | 1000 | 1110 | 1000 | 100 to 175 | 100 to 250 | N11 | 8 | 0.315 |
| 50.0 | 2000 | 2220 | 2000 | 200 to 350 | 200 to 500 | N12 | 8 | 0.315 |
How to read the chart
Find the row containing the value you know, then read across. A limit of 125 µin is exactly 3.175 µm. It is usually paired with the preferred N8 grade of 3.2 µm, but that pair is rounded. RMS is an estimate and the cut-off is a measurement setting, not a conversion.
The factor between Ra in micrometers and microinches is exact. Preferred-grade chart pairs, such as 125 µin and 3.2 µm, are rounded. The RMS column is an approximation valid for ordinary machined profiles. The Rz and Rt columns are indicative bands only, and the cut-off column is a requirement rather than a conversion.
Surface Finish Units of Measure
Five notations appear on real drawings. Two are current, two are legacy, one is a grade scale rather than a unit.
| Notation | Symbol | What it measures | Where it appears | Relationship to Ra |
|---|---|---|---|---|
| Micrometer | µm | One millionth of a metre | ISO drawings, Europe and Asia | 1 µm = 39.37 µin |
| Microinch | µin | One millionth of an inch | ASME drawings, US and Canada | 1 µin = 0.0254 µm |
| Nanometer | nm | One billionth of a metre | Optical, semiconductor, lapped surfaces | 1 µm = 1,000 nm |
| RMS | µin | Root mean square of profile deviations | Legacy US prints, some stainless and pharmaceutical specs | Profile-dependent estimate; not an exact conversion |
| CLA | µin | Centre Line Average | Older British and Commonwealth prints | CLA = Ra, identical calculation |
| N grade | N1 to N12 | Fixed roughness grade | ISO drawings, shorthand callouts | Each grade equals one Ra value |
CLA deserves a note. It is not an approximation of Ra, it is Ra under an older name. If a 1970s British print says CLA 63, the modern spec is Ra 63 µin with no arithmetic applied.
Worked Conversion: a 125 Microinch Drawing and a Micrometer Inspection Report
This worked example shows how a drawing limit and an inspection report can be compared. If the part also has geometric tolerance concerns, review the CNC machining tolerances guide separately.
The drawing specifies Ra 125 µin maximum. The inspection report from the supplier reads Ra 3.4 µm. Does the part conform?
Step 1. Convert the drawing limit into the report's units. Multiply microinches by 0.0254:
125 µin × 0.0254 = 3.175 µm
Step 2. Compare like with like. The measured value is 3.4 µm. The limit is 3.175 µm. 3.4 is greater than 3.175, so the part is out of specification by 0.225 µm.
Step 3. Sanity check in the other direction. Convert the measured value back to microinches by multiplying by 39.37:
3.4 µm × 39.37 = 133.9 µin
133.9 against a 125 limit confirms the rejection. Both directions agree, which is the point of doing the check twice.
The chart lists the preferred pair 125 µin and 3.2 µm, so 3.4 may look close. The correct comparison is against 3.175 µm, the exact converted limit, and the part fails. Convert the limit, do not eyeball the row.
Why 3.2 and 125 are the same spec
3.2 µm × 39.37 = 125.98 µin, not 125. The standard grades were defined as preferred series in each unit system independently, then correlated. The 1 percent gap is rounding in the series, not a discrepancy. When a drawing says 125 µin and a report says 3.2 µm, that is one specification written two ways. Use the tabulated pair for specifying, and the exact factor for judging conformance.
Quick Surface Finish Conversions, Without Guesswork
Enter one value, pick its unit, and the equivalents calculate as you type. Rz is returned as a range because it is an estimate.
A quick conversion worksheet
Use the exact unit factor for Ra. Do not treat RMS, Rz or Rt as fixed conversions of Ra.
- Microinches to micrometers: Ra (µin) × 0.0254 = Ra (µm). Example: 125 µin = 3.175 µm.
- Micrometers to microinches: Ra (µm) × 39.37007874 = Ra (µin). Example: 0.8 µm ≈ 31.50 µin.
- CLA: An older name for the arithmetic mean roughness, provided the measurement definition and units match.
- RMS (Rq): A separate statistic. Any Ra-to-RMS multiplier is a profile-dependent estimate, not an inspection conversion.
- N grades: Use the tabulated preferred roughness grades above, rather than trying to calculate N values from a formula.
When checking pass or fail, use the numerical limit actually written on the drawing. The preferred pair 125 µin and 3.2 µm is a rounded designation, not an exact equality.
Surface Roughness Formulas, With Worked Numbers
Important: the worked points below explain the arithmetic of roughness statistics. They are teaching examples, not a substitute for a filtered trace or the definitions in the named standard edition. Ra-to-RMS or Ra-to-Rz estimates must not be used as acceptance results.
Every parameter below is calculated from the same filtered roughness profile. They differ only in what they do with the height deviations. To make the relationships visible, all five examples use one eight-point profile with these deviations from the mean line, in micrometers:
+1.6, −1.5, +5.5, −1.6, +1.0, −1.0, +1.5, −5.5
Ra, arithmetic mean roughness
Ra = (1 / n) × Σ | yi |
Sum the absolute deviations and divide by the count. Here: 1.6 + 1.5 + 5.5 + 1.6 + 1.0 + 1.0 + 1.5 + 5.5 = 19.2, divided by 8, so Ra = 2.40 µm.
Because Ra averages absolute values, one deep scratch barely moves it. Drop the −5.5 valley to −8.0 and Ra rises only to 2.71 µm, a 13 percent change from a defect that more than doubles the depth of the deepest feature on the surface. That is why Ra can pass a surface that a seal will still leak across.
Rq, also written RMS
Rq = √ [ (1 / n) × Σ yi² ]
Squares: 2.56, 2.25, 30.25, 2.56, 1.0, 1.0, 2.25, 30.25. Sum 72.12, divided by 8 gives 9.015, square root gives Rq = 3.00 µm.
Divide that by the Ra of 2.40 and you get 1.25, not the 1.11 that the conversion charts use. Both figures are correct, and the gap between them is instructive rather than an error.
Rq squares the deviations before averaging, so it weights extreme peaks and valleys more heavily than Ra. The ratio depends on the distribution of heights in the profile, not merely on the number of measured points. The illustrative eight-point example gives Rq/Ra = 1.25. Other shapes produce different ratios, so 1.11 is not a universal conversion factor. Measure Rq directly when it is specified.
Rt, total height of the profile
Rt = Zp + Zv
The highest peak plus the deepest valley across the whole evaluation length. Here the highest peak is +5.5 and the deepest valley is −5.5, so Rt = 11.0 µm. Rt is driven entirely by the two worst points on the surface.
Against an Ra of 2.40 that is a ratio of 4.58, which sits inside the Ra × 4 to Ra × 10 band in the chart above. A profile with the same Ra but sharper isolated spikes would push that ratio toward the top of the band, which is precisely why the band is wide and why Rt is not converted from Ra.
Rz, mean roughness depth
Rz = (1 / 5) × Σ Rzi
Under the older five-section definition, a trace is divided into five sections and their peak-to-valley heights are averaged. As a separate worked example, suppose those heights are 9.8, 11.0, 9.2, 10.4 and 9.6 µm. These five values cannot be calculated from the earlier eight-point illustration. The definition of Rz must match the standard edition used for the drawing. Sum 50.0, divided by 5, gives Rz = 10.0 µm.
For this separate five-section example, the mean of the section heights is 10.0 µm, and the largest section height is 11.0 µm. The numbers show why the mean and the worst section tell different stories. They do not establish Rt or Rz for the earlier eight-point profile.
Different profiles can share the same Ra and still have different Rz values. That is why the Rz-to-Ra ranges in a reference chart are not valid acceptance conversions.
Rmax, also written Rz1max
Rmax = the largest single Rzi
From these five illustrative heights, the largest is Rmax = 11.0 µm. Rmax is the worst sampling length rather than the average of all five, which makes it the parameter of choice for sealing faces where one bad section fails the part. On this profile Rmax and Rt coincide at 11.0 µm because the two extremes share a section. When the highest peak and deepest valley fall in different sections, Rmax comes out below Rt, but do not treat parameter orderings as universal without checking the parameter definitions and evaluation conditions in the named standard.
Theoretical turning finish
Rz (µm) = ( f² / (8 × r) ) × 1000
With feed f in mm/rev and nose radius r in mm. These are basic variables in CNC turning. At f = 0.2 and r = 0.8: 0.04 / 6.4 = 0.00625 mm, so Rz = 6.25 µm.
This is a floor, not a forecast. It models the geometry of the feed marks and ignores tool wear, built-up edge, vibration and workpiece rigidity. Real measured values can differ from the theoretical geometric result because of tool wear, vibration, material response and process settings. Use it to choose a starting feed, then verify on the part.
Not sure which roughness value applies? Share the drawing and any inspection report. Meco can review the units, specified parameter and manufacturing approach before you request a quote.
Discuss a Drawing with MecoHow to Read a Full Surface Texture Callout
Most callouts carry a single Ra number. For symbol geometry, see the dedicated surface finish symbols guide. A fully populated one carries six fields around the checkmark, and each field is a separate requirement that must be verified on its own.
The two standards place the fields in broadly the same positions, but they do not mean the same thing in every slot. The difference that catches people out is the field to the right of the roughness value. Under ASME Y14.36 that area conventionally carries waviness, height and spacing. Under ISO 21920-1 it carries a second roughness parameter. A great many online symbol diagrams show the ISO meaning on an ASME-labelled figure, which is why the same callout gets read two different ways by two different shops.
| Field | Position | ASME Y14.36 | ISO 21920-1 | Example entry |
|---|---|---|---|---|
| a | Above the short leg | Roughness average, Ra, as a maximum or a max and min pair | Parameter symbol plus tolerance limit value | 1.6 or Ra 1.6 |
| b | Below position a | Production method, treatment or coating | Manufacturing process | GRIND, HONE, ANODIZE |
| c | Right of the long leg | Roughness sampling length or cut-off | Evaluation length, section length and number of sections | 0.8 |
| d | Below the long leg | Lay symbol | Surface lay and direction of lay | =, ⊥, X, M, C, R, P |
| e | Left of the long leg | Minimum material removal, in mm | Machining allowance | 2 |
| f | Right of position a | Waviness height and waviness spacing, Wt and Wsm | Second parameter requirement, such as an upper Rz limit | ASME 0.05-2, ISO Rz 6.3 |
Decoding an ASME callout, field by field
Take a callout with a bar across the top and these entries: a = 1.6, b = GRIND, c = 0.8, d = ⊥, e = 2, f = 0.05-2.
The bar makes material removal mandatory, so the surface cannot be left as cast. Process choice should be reviewed with custom CNC machining requirements if the feature also carries tight dimensions. Position a sets Ra 1.6 µm as the upper limit. Position b names grinding as the required process, which removes the supplier's freedom to reach 1.6 µm by fine turning instead. Position c fixes the cut-off at 0.8 mm, and that matters, because measuring the same surface at 2.5 mm returns a different number. Position d requires the lay to run perpendicular to the edge shown in that view. Position e reserves 2 mm of stock for the grinding operation.
Position f is the one most readers skip. Under ASME it reads as waviness height 0.05 mm and waviness spacing 2 mm. That is a separate control on longer-wavelength form error, and a roughness measurement will not detect a violation of it. A ground surface can sit comfortably inside Ra 1.6 µm while still failing waviness because of chatter or wheel deflection, and a profilometer set to report Ra alone will pass the part.
The same field under ISO
On an ISO 21920-1 drawing that slot means something different. An entry of Rz 6.3 in position f adds an independent roughness limit alongside the Ra limit in position a. Ra 1.6 with Rz 6.3 is a ratio just under 4, which is tight. Both must be met, and neither implies the other.
ISO 21920-1 also allows far more than the older ISO 1302 syntax could express, including explicit filter types and nesting indices, evaluation length, section count, and which tolerance acceptance rule applies, the maximum rule, the 16 percent rule or the median rule. A complete ISO 21920 indication can therefore be considerably longer than the ASME equivalent. If you receive a callout carrying a U or L prefix, or a filter designation, it is written to ISO 21920 and should not be read using ASME field conventions.
Two modifiers change the meaning of the whole symbol under both standards. A circle at the base forbids material removal, so the surface stays as cast, forged or moulded. A bar across the top requires it. A plain checkmark with neither leaves the method to the shop. For the checkmark geometry and the full lay-direction table, see our guide to reading surface finish symbols on a drawing.
Four Conversion Mistakes That Scrap Parts
These are four practical mistakes to check when drawings and inspection reports use different roughness notations.
Treating RMS as Ra
A drawing calling out 63 µin RMS (Rq) is not asking for Ra 63 µin. Dividing by 1.11 gives an illustrative Ra estimate of 56.8 µin, but that estimate cannot prove compliance. The supplier must measure Rq itself, using the required conditions, rather than report an Ra result under the wrong parameter name.
Assuming Rz or Rt is a fixed multiple of Ra
The 4 to 7 band for Rz and the 4 to 10 band for Rt are observations across machined surfaces, not rules. Two parts with identical Ra can differ by a factor of two in Rz, because Ra averages the whole profile while Rz and Rt key off the extremes. The relationship also changes with the making process. A blasted surface does not share the same peak distribution as an ordinary turned face. For the legacy five-section definitions in this example, Rt is not less than the mean section height Rz when both refer to the same evaluated trace. Do not assume parameter names or comparisons remain identical across all editions. If a drawing specifies more than one parameter, measure each one.
Transposing microinches and micrometers
The costliest and simplest error. Ra 125 µin is a routine machined finish. Ra 125 µm is 39 times rougher and is not a producible machining spec at all. The tell is the decimal point: metric callouts carry one (1.6, 3.2, 6.3) and imperial callouts generally do not (63, 125, 250). A bare "125" on an unlabelled drawing should be queried, not assumed.
Comparing values measured at different cut-offs
Cut-off length is not metadata, it is part of the specification. Measuring a surface at 0.8 mm when the drawing calls for 2.5 mm filters out longer-wavelength content and returns a lower Ra on a physically unchanged part. If a supplier report and an incoming inspection disagree by 20 or 30 percent, check the cut-off on both before investigating the process.
How Surface Roughness Is Measured
Four methods, chosen on accuracy needed, whether the surface can be touched, and whether the check happens at the machine or in the lab.
Contact profilometer. A diamond stylus traverses the surface and records the profile, from which the instrument computes Ra, Rq, Rz, Rt and Rmax. This is the reference method and the one ASME B46.1 and ISO 21920 are written around. Limitations: it samples a single line rather than an area, and the stylus can mark soft or coated surfaces.
Non-contact optical. Confocal microscopy, white light interferometry and laser triangulation map an area in three dimensions without touching the part. Standard for soft metals, coatings, and any finish below Ra 0.1 µm where stylus radius becomes a limiting factor.
Comparator blocks. Reference plates at known Ra, compared by sight and fingernail. Fast and genuinely useful for a first-pass sort on the floor. Not evidence, and never acceptable on an inspection report.
Portable testers. Handheld stylus units taken to the machine for in-process checks between setups.
Sampling length and cut-off
The cut-off wavelength λc separates roughness from waviness. Set it too short and real roughness is filtered out as waviness. Set it too long and form error contaminates the reading. ISO 4288, withdrawn and replaced by ISO 21920-3, ties λc to the expected Ra band: 0.08 mm for Ra at or below 0.02 µm, 0.25 mm from Ra 0.02 to 0.1, 0.8 mm from Ra 0.1 to 2, 2.5 mm from Ra 2 to 10, and 8 mm above that. The chart above lists legacy reference cut-offs for the preferred grades. These should be confirmed against the specification operator that applies to the actual drawing. The standard evaluation length is five consecutive sampling lengths.
When a drawing does not state the evaluation settings, identify the governing standard and its default operator before inspection. A 0.8 mm cut-off is familiar in older tables but is not a safe universal default for every grade or standard.
When a finish must be changed rather than just measured, coordinate the drawing with surface finishing services and the process owner. A coating, polish or final machining pass can change both the surface and the inspection plan. When comparing the capability of a given operation, use the machining surface finish chart.
Surface Finish Standards in 2026
Several documents matter when a print uses both old and current roughness notation.
What is ASME Y14.36M?
ASME Y14.36 is the North American standard for surface texture symbols. It defines the checkmark, the field positions, the lay symbols, and how roughness and waviness are annotated on a drawing. It deliberately does not specify how the surface is produced or how it is measured, which is B46.1's job.
The designation most people search for, Y14.36M, is the 1996 metric-designated edition. It remained in effect for well over a decade and is still quoted on a large number of legacy prints. The current edition is ASME Y14.36-2018, now under stabilized maintenance, meaning ASME will consider change requests but is not actively revising it. The M was dropped from the designation. If a drawing in front of you cites Y14.36M-1996, it is not wrong, it is old, and the symbol conventions you need are substantially unchanged.
What is ASME B46.1, and is ANSI B46.1 the same thing?
ASME B46.1 is the companion measurement standard, currently the 2019 edition. Y14.36 says how to draw the requirement. B46.1 says how to measure it, defining Ra, Rq, Rz, Rt, the waviness parameters, instrument setup and filtering.
ANSI is the accrediting organization associated with ASME standards, but check the exact edition cited on a drawing rather than assuming different historical references are identical. It is an ASME standard accredited by ANSI, so both prefixes circulate. Older references and many supplier quality manuals use ANSI, current ones use ASME. There is no separate ANSI version to obtain.
ISO 1302 is withdrawn: what replaced it
This is the correction most surface finish reference pages have not made. ISO 1302:2002 was withdrawn and superseded by ISO 21920-1:2021. The same revision withdrew ISO 4287 and ISO 4288, replacing them with ISO 21920-2 for terms and parameters and ISO 21920-3 for specification operators.
Practically, drawings issued before 2022 will keep citing ISO 1302 and ISO 4287 for years, and those callouts remain readable. Ra, Rz and Rq survive into ISO 21920-2 with their definitions substantially intact, so the numbers on an old print still mean what they meant. What changed is the specification syntax and the default rules around sampling and filtering. ISO 21920-1 introduces explicit tolerance acceptance rules, the maximum rule, the 16 percent rule and the median rule, along with filter types and nesting indices that ISO 1302 had no way to express. A drawing written to ISO 21920 can therefore state requirements an ISO 1302 drawing could only leave to default.
If you receive a print citing ISO 1302, read it as written. If you are issuing a new print, cite ISO 21920-1.
| Standard | Covers | Status in 2026 |
|---|---|---|
| ASME Y14.36-2018 | Surface texture symbols on drawings | Current, under stabilized maintenance. Supersedes Y14.36M-1996. |
| ASME B46.1 | Measurement, parameters, instrumentation | Current. Also cited as ANSI B46.1. |
| ISO 21920-1:2021 | Indication of surface texture | Current. Replaced ISO 1302:2002. |
| ISO 21920-2:2021 | Terms, definitions, parameters | Current. Replaced ISO 4287:1997. |
| ISO 21920-3:2021 | Specification operators, cut-offs | Current. Replaced ISO 4288:1996. |
| ISO 1302:2002 | Indication of surface texture | Withdrawn. Still cited on legacy drawings. |
When working across US and metric drawings, record both the original specification and any exact conversion used for comparison. Ask the supplier to confirm the measurement convention rather than assuming the numbers are interchangeable.
