How to Tell If Steel Is Galvanized: Visual and Test Methods

You picked up a piece of steel from the yard, a supplier, or an old job site, and now you need to know one thing: is it galvanized or not? Maybe you are about to weld it and you know better than to torch zinc without proper ventilation. Maybe you are specifying material for a project that needs corrosion protection and you want to confirm what you actually received. Either way, getting this right matters.

The good news is there are several ways to figure it out, ranging from a quick look with your own eyes to lab grade analysis. Lets walk through all of them.

What Galvanized Steel Actually Is

Before you start testing, it helps to understand what you are looking at. Galvanized steel is regular carbon steel that has been coated in a layer of zinc. The most common method is hot dip galvanizing, where the steel gets submerged in a bath of molten zinc at roughly 840°F. When the steel comes out and cools, the zinc bonds to the surface and forms a series of intermetallic layers known as gamma, delta, and zeta. That metallurgical bond is what makes hot dip galvanizing so durable compared to paint or other coatings.

The zinc acts as a sacrificial layer. It corrodes before the steel underneath does, buying the base metal years or even decades of protection. Depending on the environment, a properly galvanized piece of steel can last 20 to 50 years before the zinc wears away enough to expose bare metal.

So when you are trying to figure out whether a piece of steel is galvanized, what you are really asking is: does this thing have a zinc coating, and how was that coating applied?

Visual Inspection: Your First and Fastest Tool

Nine times out of ten, you can get a strong initial read just by looking at the steel carefully. Here is what to watch for.

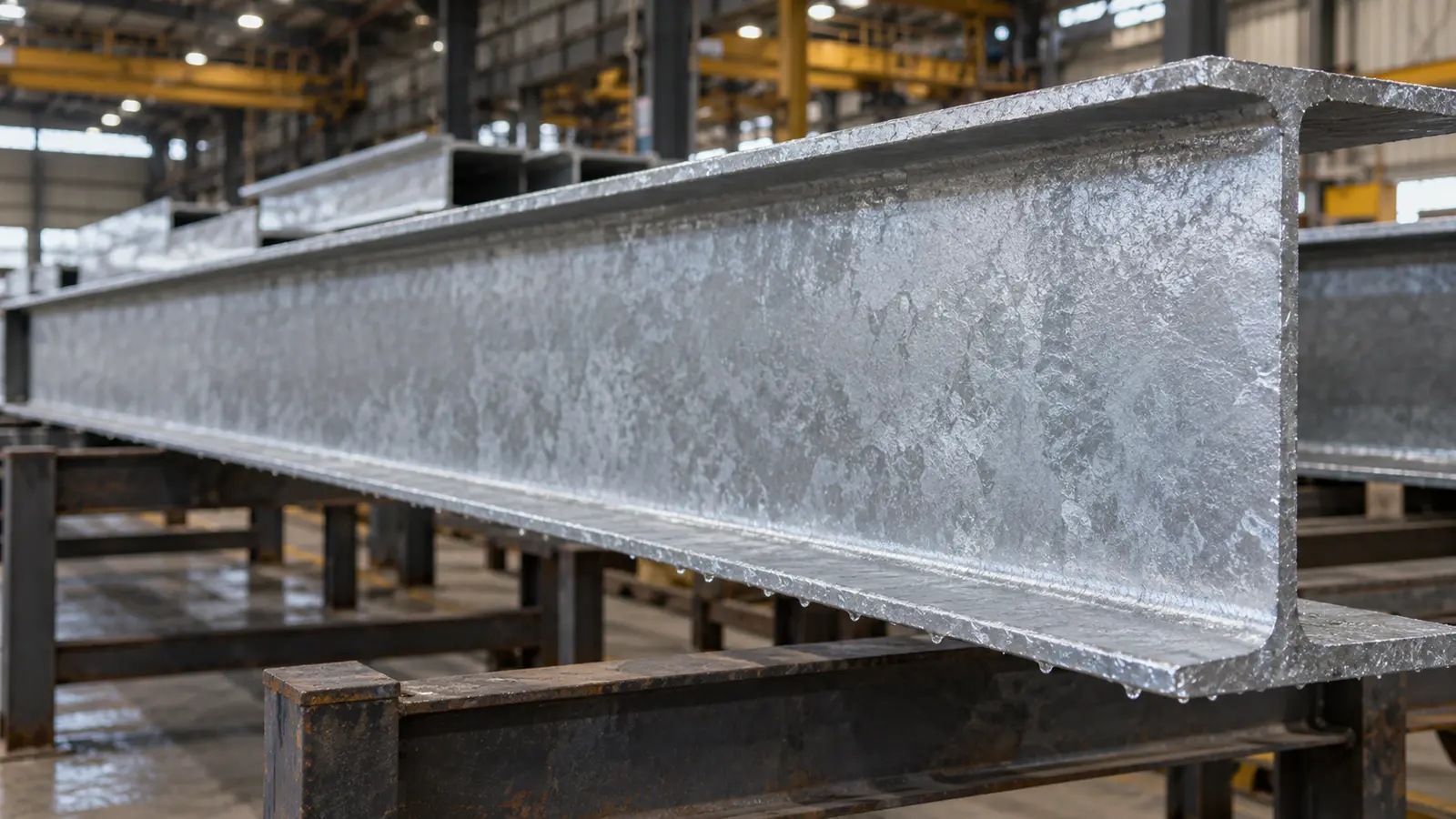

The spangle pattern. This is the single most recognizable feature of hot dip galvanized steel. When molten zinc cools on the steel surface, zinc crystals form and create a pattern that looks a bit like snowflakes or frost on a window. The industry calls these "spangles." They can be large and obvious or small and subtle, depending on the chemistry of the zinc bath and the cooling rate. If you see that crystalline, star shaped pattern on the surface, you are almost certainly looking at galvanized steel.

A matte gray color. Fresh galvanized steel can look bright and silvery, but it does not stay that way for long. Exposure to air and moisture causes the zinc to develop a dull, matte gray patina over time. If you are looking at steel that has been outdoors for a while and it has an even, chalky gray tone without heavy rust, that is a strong clue it has been galvanized. For a deeper look at why this color shift happens and what it means, check out our article on why hot dip galvanized steel turns dark.

Texture. Run your hand across the surface. Galvanized steel has a slightly rough, almost gritty feel compared to bare steel, stainless steel, or painted surfaces. The zinc coating adds a noticeable texture. Bare hot rolled steel has mill scale that can feel rough too, but it has a dark bluish black color, not the silvery gray of galvanizing.

Absence of rust. If the steel has been sitting outdoors for months and shows no significant rust, something is protecting it. Galvanizing is one of the most common explanations. Regular carbon steel exposed to rain and humidity will start showing orange rust in a matter of weeks.

Drip marks and runs. When steel is pulled out of a molten zinc bath, gravity does its thing. You will often see drips, runs, or slightly thicker buildup of zinc along bottom edges and corners. These drainage marks are a dead giveaway that the piece was dipped rather than painted or plated.

Visual inspection is fast and free, but it has limits. A gray coating could also be zinc rich paint. A shiny surface might be electroplated zinc, which is much thinner than hot dip galvanizing. And old weathered galvanizing can look a lot like plain dirty steel. So when the eyes leave you unsure, its time to move on to hands on testing.

The Magnet Test

Grab a magnet. This one is simple. Galvanized steel is magnetic because the base metal is carbon steel, which contains iron. If the magnet sticks, you know you have a ferrous metal, which rules out aluminum, copper, brass, and other nonferrous materials that sometimes get confused with galvanized steel because of color similarities.

But here is the catch: the magnet test only tells you the steel is steel. It cannot tell you whether there is a zinc coating on it. A magnet will stick just as firmly to bare carbon steel, painted steel, or galvanized steel. The slight reduction in magnetic pull caused by a thin zinc layer is so minor that you would not notice it by hand.

Think of the magnet test as a first pass filter. If the magnet does not stick, the piece is not galvanized steel. If it does stick, you need additional tests to confirm the zinc coating.

The Scratch Test

This one is straightforward but a little destructive. Take a utility knife, a file, or even a sharp screwdriver and scratch the surface of the steel in an inconspicuous area.

On galvanized steel, the scratch will reveal a contrast. The zinc coating is softer than the steel underneath, so you will cut through it and see the darker base metal beneath a silvery or whitish zinc layer. The scratch may also reveal the layered nature of the coating if you look closely, since the zinc alloy layers have slightly different colors and hardness levels.

On bare steel, a scratch just reveals more steel. On painted steel, you will see a clear paint film peeling or chipping away, and paint behaves very differently under a blade than a metallic zinc coating does.

One thing to keep in mind: if the zinc coating is very thin, such as on electrogalvanized steel, the scratch test might not show you much contrast. Electrogalvanized coatings can be as thin as a few microns, whereas hot dip coatings typically range from about 1.4 to 3.9 mils, which is roughly 35 to 100 microns. That thickness difference is significant.

The Acid or Vinegar Test

This is a field test that gives you a quick chemical confirmation. Apply a small drop of white vinegar or diluted muriatic acid (hydrochloric acid) to the steel surface and watch what happens.

Zinc reacts with acid. If the surface is galvanized, the acid will fizz and bubble as it attacks the zinc coating. The reaction produces small hydrogen gas bubbles, and you might notice a slight white residue where the zinc dissolves. Plain carbon steel will also react with strong acids, but the reaction looks different. With zinc, the fizzing is quicker, lighter, and the residue is white, not orange or brown.

White vinegar is the safest option for this test. It is mild enough that it will not cause serious damage to the piece but strong enough to react visibly with zinc. Just put a few drops on a clean spot, wait 30 seconds to a minute, and observe. If you see active bubbling and a whitish residue, you are dealing with zinc.

This test is not perfect for distinguishing hot dip galvanizing from other forms of zinc coating like zinc rich paint or mechanical plating, but it does confirm the presence of zinc on the surface, which is usually the main question people need answered.

Coating Thickness Measurement

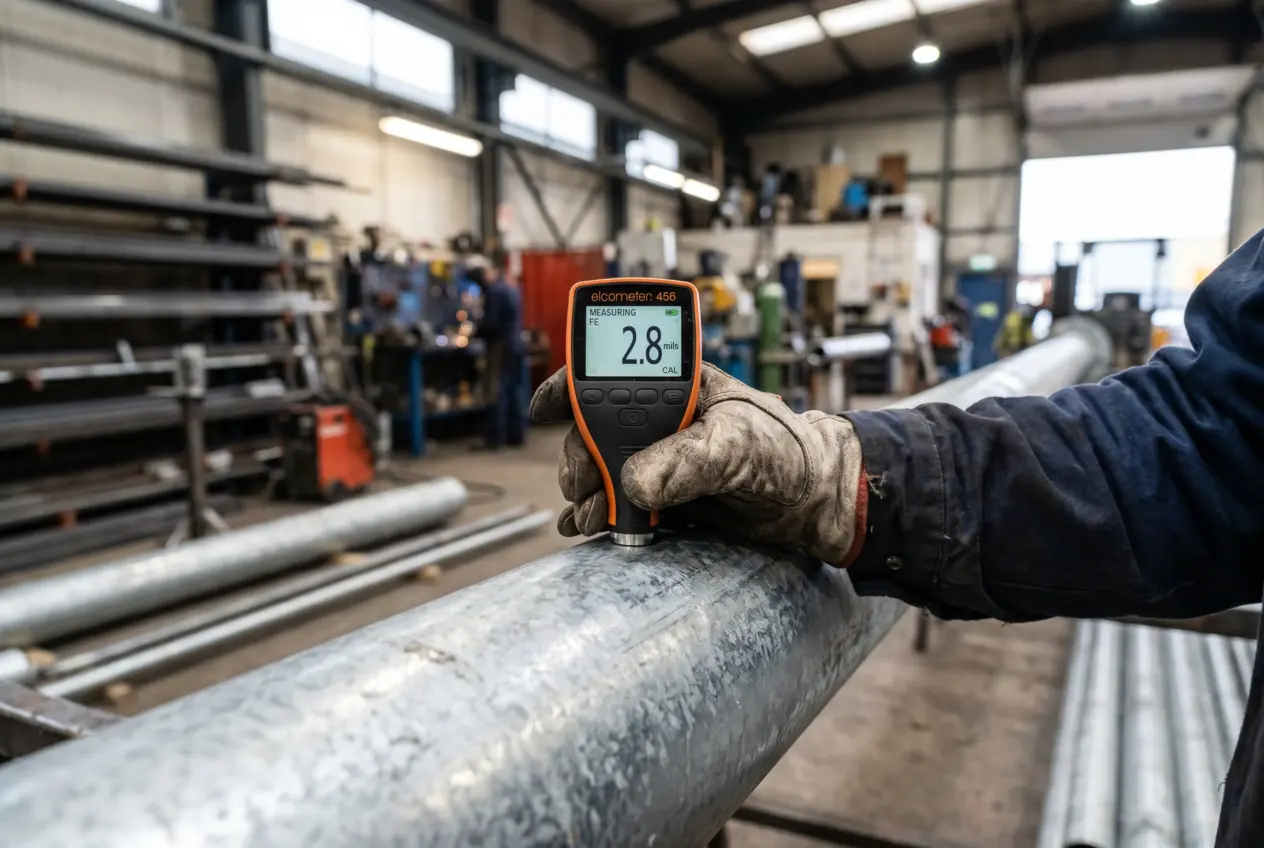

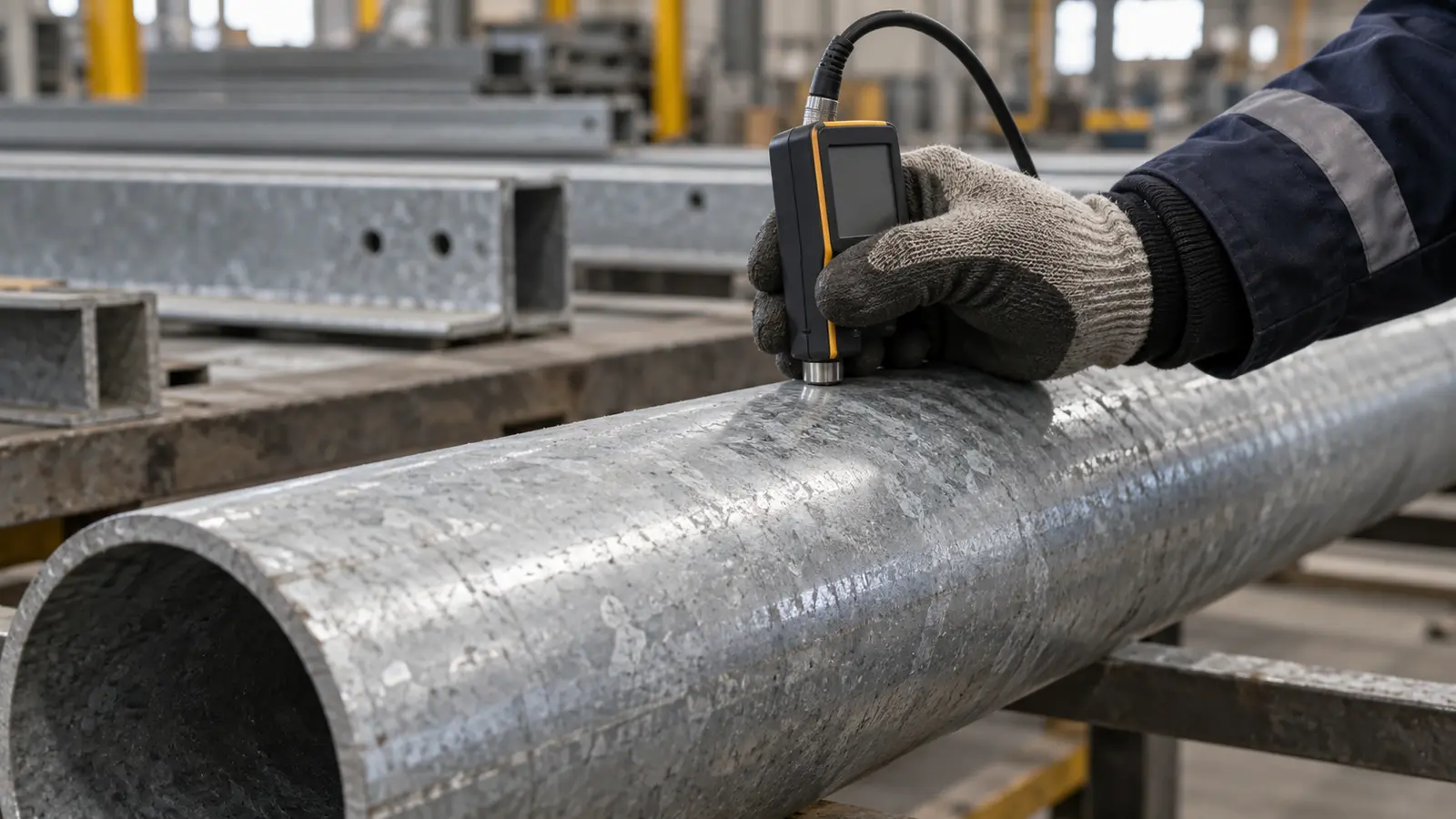

If you need more precision, a magnetic coating thickness gauge is the go to tool. These gauges measure the distance between a magnetic probe and the ferrous steel substrate. Since zinc is nonferrous, the gauge reads the zinc coating as the gap between the probe and the steel, giving you a thickness measurement.

There are three common styles. Pencil type gauges are the most basic and affordable. You press the magnetized tip against the surface and read the thickness off a calibrated scale as you slowly pull it away. Banana style gauges work on a similar principle but offer better repeatability. Electronic digital gauges are the most accurate and can store readings for documentation purposes.

For hot dip galvanized steel per ASTM A123, you should see coating thickness readings in the range of 1.4 to 3.9 mils, depending on the steel thickness and the specific material category. If your gauge shows consistent readings in that range across multiple spots, you can be confident the steel has a substantial zinc coating consistent with hot dip galvanizing.

Keep in mind that a coating thickness gauge cannot tell you what the coating is made of. It just tells you there is a nonferrous coating of a certain thickness on the steel. Paint, thermal spray zinc, and other coatings will also register on these gauges. But when combined with visual clues and a scratch or acid test, a thickness reading in the right range is strong confirmation.

Laboratory Testing: When You Need to Be Sure

Sometimes you are in a situation where you absolutely must verify the coating type with certainty. Maybe you are a manufacturer making product claims, or maybe a specification requires documented proof of galvanizing. In those cases, lab testing is the answer.

Electron paramagnetic resonance (EPR) is one lab method that can analyze the molecular composition of the coating. Hot dip galvanizing will show high zinc content on the outer surface with increasing iron content deeper into the coating, reflecting those intermetallic alloy layers. Other zinc coatings like mechanical plating or metalizing will show pure zinc throughout without the iron gradient.

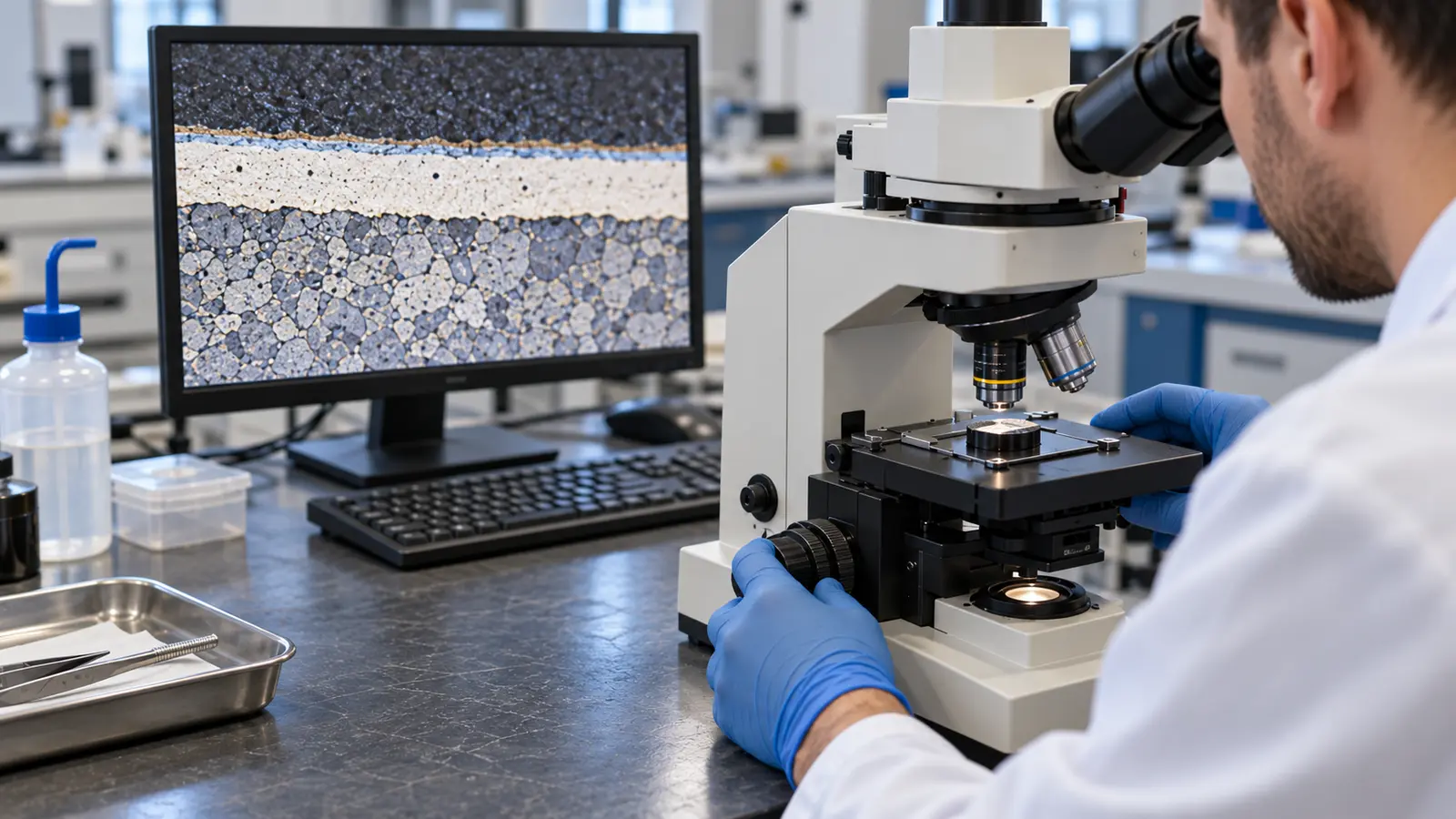

Photomicrography involves cutting a cross section of the coated steel, polishing it, and examining it under a microscope. A true hot dip galvanized coating will reveal three distinct intermetallic layers between the outer zinc and the base steel. Those layers, gamma, delta, and zeta, form only through the metallurgical reaction between molten zinc and steel. No other zinc application method produces them. The American Galvanizers Association provides detailed photomicrograph references that show exactly what each layer looks like under magnification.

Lab testing is the only way to definitively distinguish hot dip galvanizing from metalizing, mechanical plating, or zinc rich paint. But it takes time, costs money, and destroys the sample. For most practical purposes on the shop floor or in the field, the combination of visual inspection, a scratch or acid test, and a coating thickness measurement will give you a reliable answer.

Quick Reference: Galvanized vs. Other Steel Finishes

When you stack up the clues from the methods above, the picture becomes clear pretty fast. A piece of steel that is matte gray with spangle marks, slightly rough to the touch, reacts to vinegar with fizzing, attracts a magnet, and reads 2 to 3 mils on a thickness gauge is galvanized steel. No question about it.

When It Matters Most

Identifying galvanized steel is not just an academic exercise. If you weld galvanized steel without removing the coating first, the zinc vaporizes and creates toxic fumes that can cause metal fume fever, a serious health concern. If you are buying material that is supposed to be galvanized and it turns out its just painted, your project loses decades of expected corrosion protection. And if you are recycling scrap, galvanized steel and bare steel have different values and processing requirements.

It also matters when choosing downstream manufacturing processes. If your project involves casting metal components, for example, understanding the base material and its coatings helps you spec the right process. Meco offers custom sand casting for projects where you need to produce new steel or aluminum parts from scratch rather than relying on coated stock, and our surface finishing services include galvanizing, anodizing, chrome plating, and powder coating so the finished part gets exactly the protection it needs.

Take the few minutes to run these checks. Your lungs, your budget, and your project will thank you.
