How to Tell If Aluminum Is Anodized: Visual Signs & Tests

If you need to know whether an aluminum part is anodized, start with three checks: look at the surface, test conductivity, and verify the coating if needed. Anodized aluminum usually has a more uniform, durable, and slightly muted metallic appearance than bare aluminum, and unlike bare aluminum, the anodic oxide layer is electrically insulating. For OEMs and product teams, that matters because finish identification affects bonding, grounding, wear performance, rework, and supplier quality control.

The challenge is that clear anodized aluminum can look very similar to untreated aluminum at first glance. Dyed anodized parts are easier to spot, but clear anodize, painted aluminum, powder-coated aluminum, and polished mill finish can all be confused if you rely on appearance alone. The best approach is to use a simple decision process: visual inspection first, then a conductivity check, then a coating measurement if the answer still matters for production, assembly, or QA.

What Is Anodized Aluminum?

Anodized aluminum is aluminum that has gone through an electrochemical process to thicken and control its natural oxide layer. Instead of applying a coating on top like paint, anodizing converts the outer surface of the aluminum itself into a durable anodic oxide layer.

According to the Aluminum Anodizers Council, anodizing converts the aluminum surface into a decorative, durable, corrosion-resistant anodic oxide finish. That distinction matters because anodize behaves differently from paint or powder coat in wear, adhesion, conductivity, and appearance.

In practical terms, anodizing is used to improve:

• corrosion resistance
• wear resistance
• surface hardness
• cosmetic appearance
• dyeability
• paint and adhesive bonding

For industrial parts, the most common anodize types are Type II sulfuric anodize and Type III hard anodize under MIL-PRF-8625, which covers anodic coatings on aluminum and aluminum alloys.

How Can You Tell If Aluminum Is Anodized?

You can tell if aluminum is anodized by checking for a uniform metallic finish, higher scratch resistance, lower surface conductivity, and measurable oxide thickness. No single field method is perfect by itself, especially for clear anodized parts, so the most reliable approach is to combine visual inspection with one practical test.

Here is the fastest decision process:

1. Check the appearance. Look for a uniform metallic finish, often matte to satin, without the film-like look of paint.
2. Test conductivity. Anodized aluminum has an insulating oxide surface. Bare aluminum remains conductive.
3. Check scratch and wear behavior. Anodized surfaces usually resist light scratching better than bare aluminum.
4. Measure coating thickness if needed. Eddy current gauges are commonly used to confirm anodic coating thickness.
5. Use lab or cross-section verification for critical parts. If the part is quality-critical, visual checks are not enough.

For OEM programs, the real question is not just whether a part looks anodized. It is whether the finish can be verified confidently enough to support design, assembly, grounding, and supplier acceptance decisions.

What Does Anodized Aluminum Look Like?

Anodized aluminum usually looks more uniform, refined, and controlled than bare aluminum. Clear anodize keeps a metallic look, but the surface often appears more even and less raw than mill finish aluminum.

Typical visual signs include:

• a consistent satin or matte metallic appearance
• less raw-metal glare than bare aluminum
• color that looks integrated into the metal rather than sitting on top
• better cosmetic uniformity across the visible surface
• better resistance to fingerprints and handling marks than bare aluminum

Clear anodized finishes are transparent and allow the silver-gray metallic properties of aluminum to remain visible. See AAC guidance on clear anodic finishes.

Visual inspection is useful, but not conclusive on its own. A metallic-looking part is not automatically anodized. Clear anodize, polished aluminum, and some other surface treatments can appear similar under shop lighting.

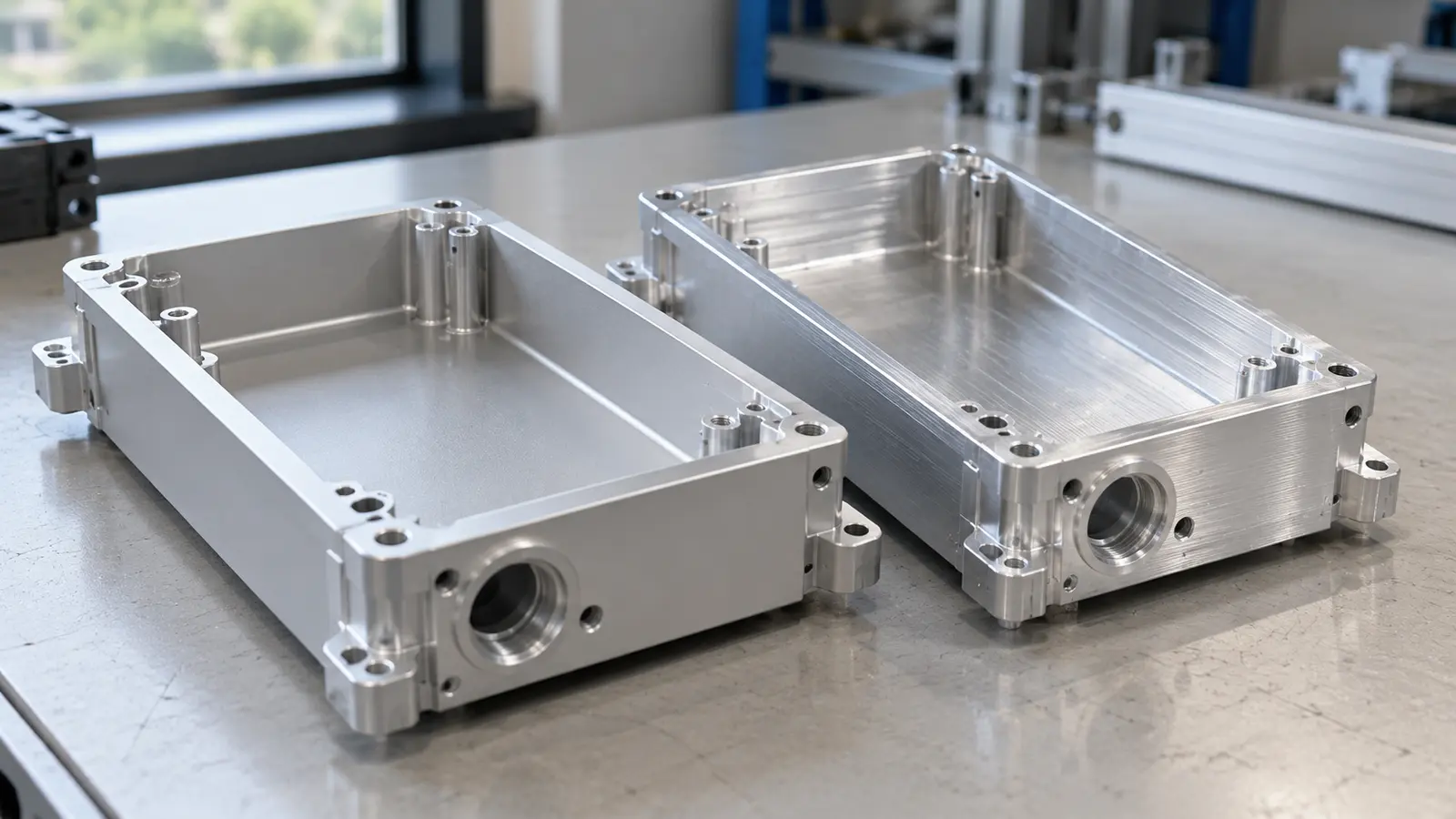

How to Tell Clear Anodized Aluminum from Bare Aluminum

Clear anodized aluminum is the hardest version of this identification problem because it does not rely on obvious color. The finish usually keeps the natural aluminum look, which is why many people mistake it for untreated metal.

The best practical difference is this:

• bare aluminum is conductive, softer at the surface, and more prone to quick surface scratching and oxidation variability
• clear anodized aluminum has an insulating oxide layer, improved surface hardness, and a more controlled engineered finish

If the part is a cosmetic or architectural piece, clear anodize also tends to look more uniform across the visible face. Bare aluminum often looks more variable, especially around machining lines, fingerprints, surface oxidation, or handling marks.

Appearance can still vary by alloy, pretreatment, thickness, and seal quality, so clear anodized parts will not always look identical from one production batch to another.

Can You Test Anodized Aluminum with a Multimeter?

Yes. A conductivity check is one of the most practical ways to test whether aluminum is anodized. Anodized aluminum has an aluminum oxide surface, and that oxide layer is electrically insulating, while bare aluminum remains conductive.

Fictiv notes that a common way to determine if an aluminum part is anodized is to test the surface conductivity with a digital multimeter. If the part is not anodized, it will likely show very low resistance. See Fictiv’s anodizing guide.

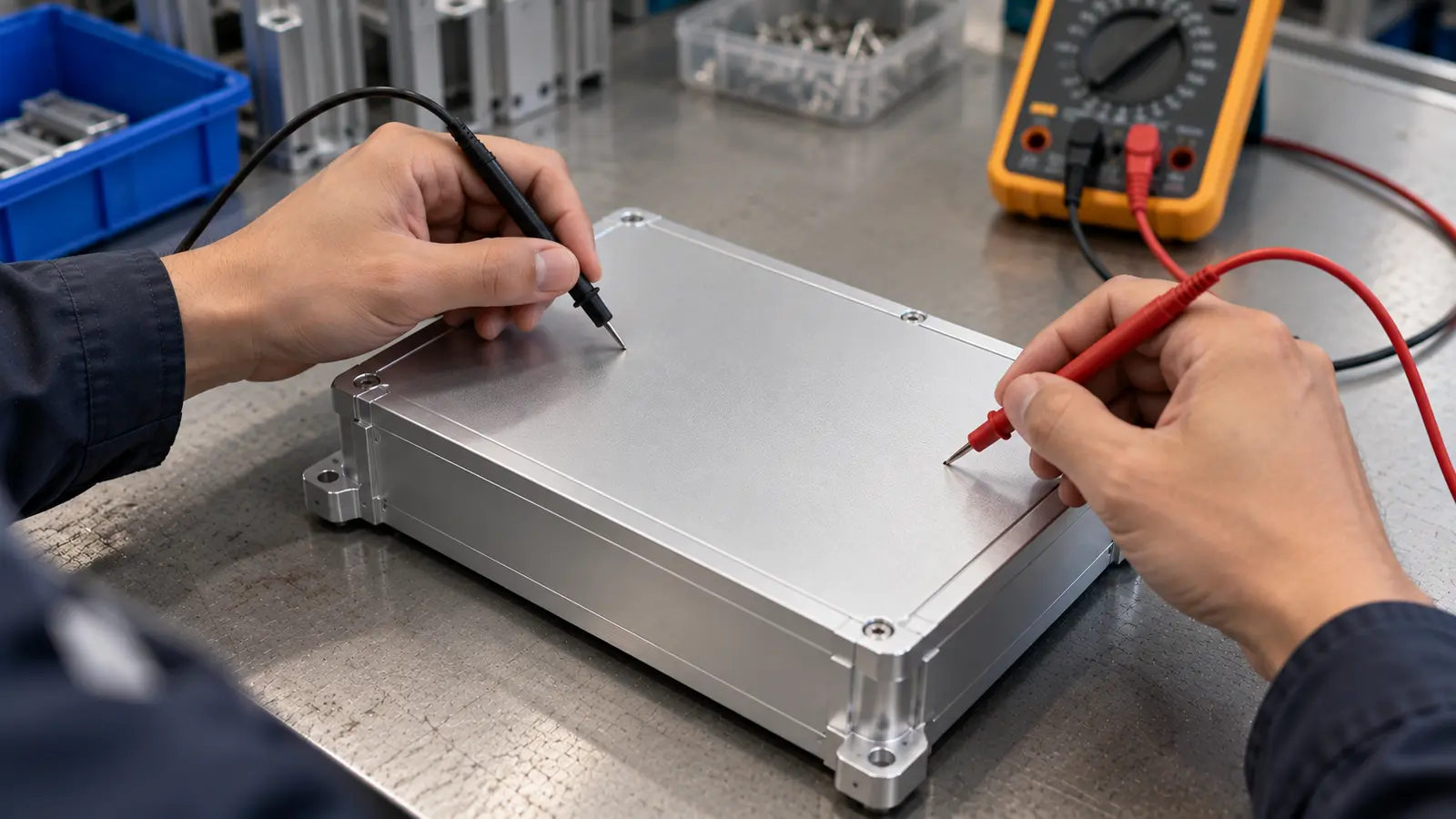

How to do a basic multimeter check

1. Set the multimeter to continuity or low resistance.
2. Place probes on two nearby points on the surface.
3. Compare the reading to a known bare aluminum area if one is available.

What the result means

• Bare aluminum: usually conductive at the surface
• Anodized aluminum: often shows little to no continuity across the anodized surface
• Painted or powder-coated aluminum: may also appear non-conductive

That last point is important. A multimeter test is very useful, but it does not automatically distinguish anodize from every other non-conductive finish. It tells you there is likely an insulating surface layer. That is why it should be combined with appearance and surface behavior clues.

The Aluminum Anodizers Council also provides technical guidance on the electrical effects of anodizing, including applications where anodizing is used for insulation. See AAC electrical properties bulletin.

Does Anodized Aluminum Scratch Differently?

Yes. Anodized aluminum usually resists light scratching and surface wear better than bare aluminum because the anodic oxide is harder than the base metal. However, a scratch test should be used carefully because it can damage cosmetic surfaces.

A light rub or scratch test can still provide clues:

• Anodized aluminum: surface often feels harder and resists minor abrasion better
• Bare aluminum: marks more easily and may show a brighter, softer exposed surface
• Painted aluminum: coating may chip, flake, or reveal a film edge
• Powder-coated aluminum: behaves like a thicker polymer coating rather than a converted metallic surface

AAC guidance notes that anodizing does not hide scratches. If you can feel a scratch before anodizing, you will typically still be able to see it after anodizing. See the AAC anodized aluminum FAQ.

That is also useful in reverse. If a part shows a durable metallic finish but no obvious paint-film edge when worn, that behavior is more consistent with anodize than paint.

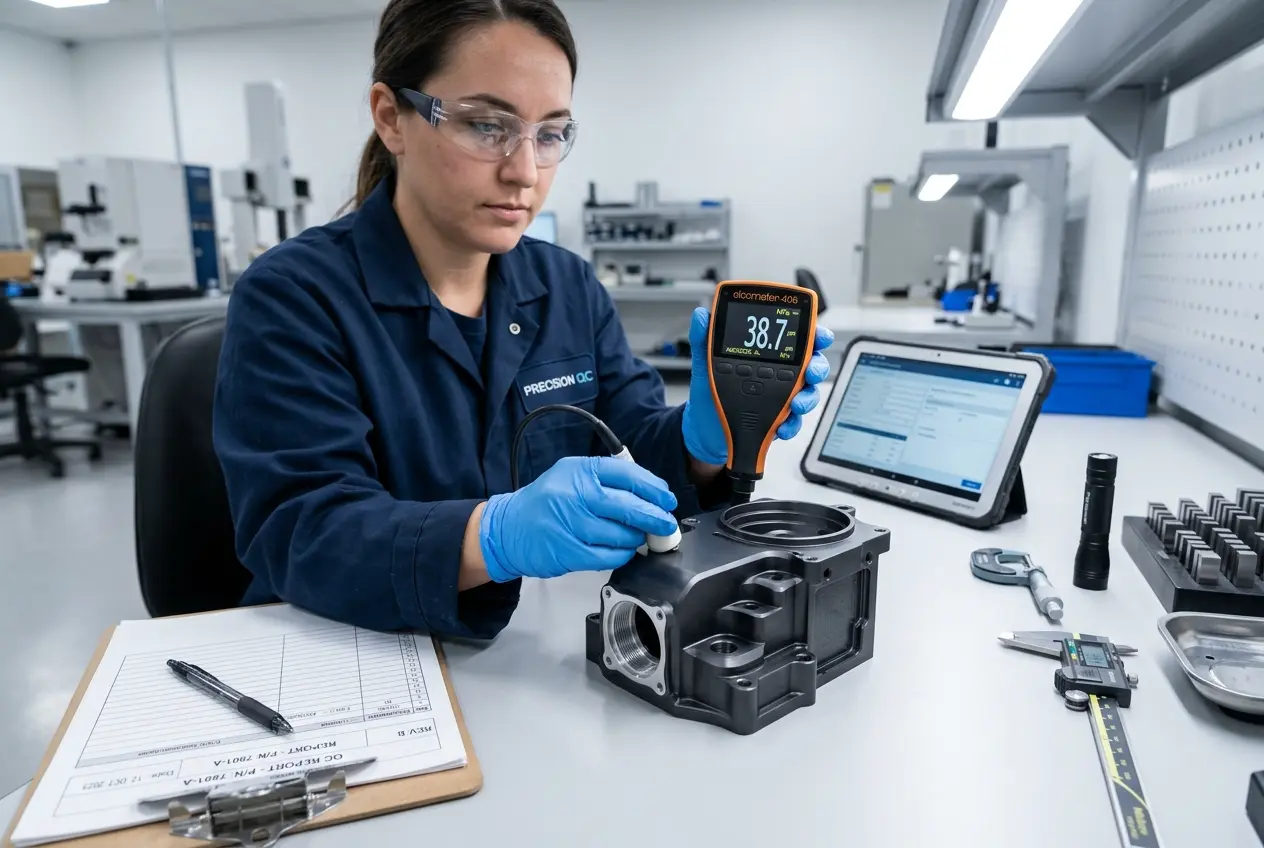

How to Measure Anodized Coating Thickness

If finish identification matters for QA or supplier acceptance, coating measurement is more reliable than guesswork. The most common non-destructive method is the eddy current method.

ASTM B244 covers the eddy-current method for measuring thickness of anodic coatings on aluminum. It is specifically suited to non-conductive coatings on nonmagnetic base metals.

Products Finishing explains that eddy current instruments are widely used for anodized aluminum thickness measurement and notes that readings can be affected by edge distance, curvature, surface roughness, base metal thickness, conductivity, and probe pressure.

Why thickness measurement matters

A thickness reading can help answer two key questions:

• is there an anodic coating present at all?
• is the finish consistent with the specified anodize process?

Typical reference ranges

These vary by process, alloy, and specification, but common guidance includes:

• Type II sulfuric anodize: roughly 1.8 to 25.4 microns
• Type III hard anodize: roughly 12.7 to 115 microns

The AAC reference guide summarizes these ranges. See the AAC anodizing reference guide.

For critical inspection work, cross-sectional microscopy can also be used. ASTM B487 covers microscopical measurement of coating thickness and is particularly useful for anodic coatings on aluminum.

Anodized Aluminum vs Painted vs Powder-Coated vs Bare Aluminum

These finishes can look similar from a distance, but they behave very differently in inspection and use.

This distinction matters in real manufacturing because anodize is a conversion finish. Paint and powder coat are applied coatings. That affects grounding, adhesive prep, wear resistance, cosmetic durability, repair options, and dimensional impact.

If your team is comparing finish strategies for OEM parts, Meco’s surface finishing services support anodizing alongside painting, plating, powder coating, and other finishing options under one workflow.

What Other Tests Can Be Used for Anodized Aluminum?

Beyond visual inspection and a multimeter, several more advanced methods can be used when the part is high value, quality-critical, or disputed.

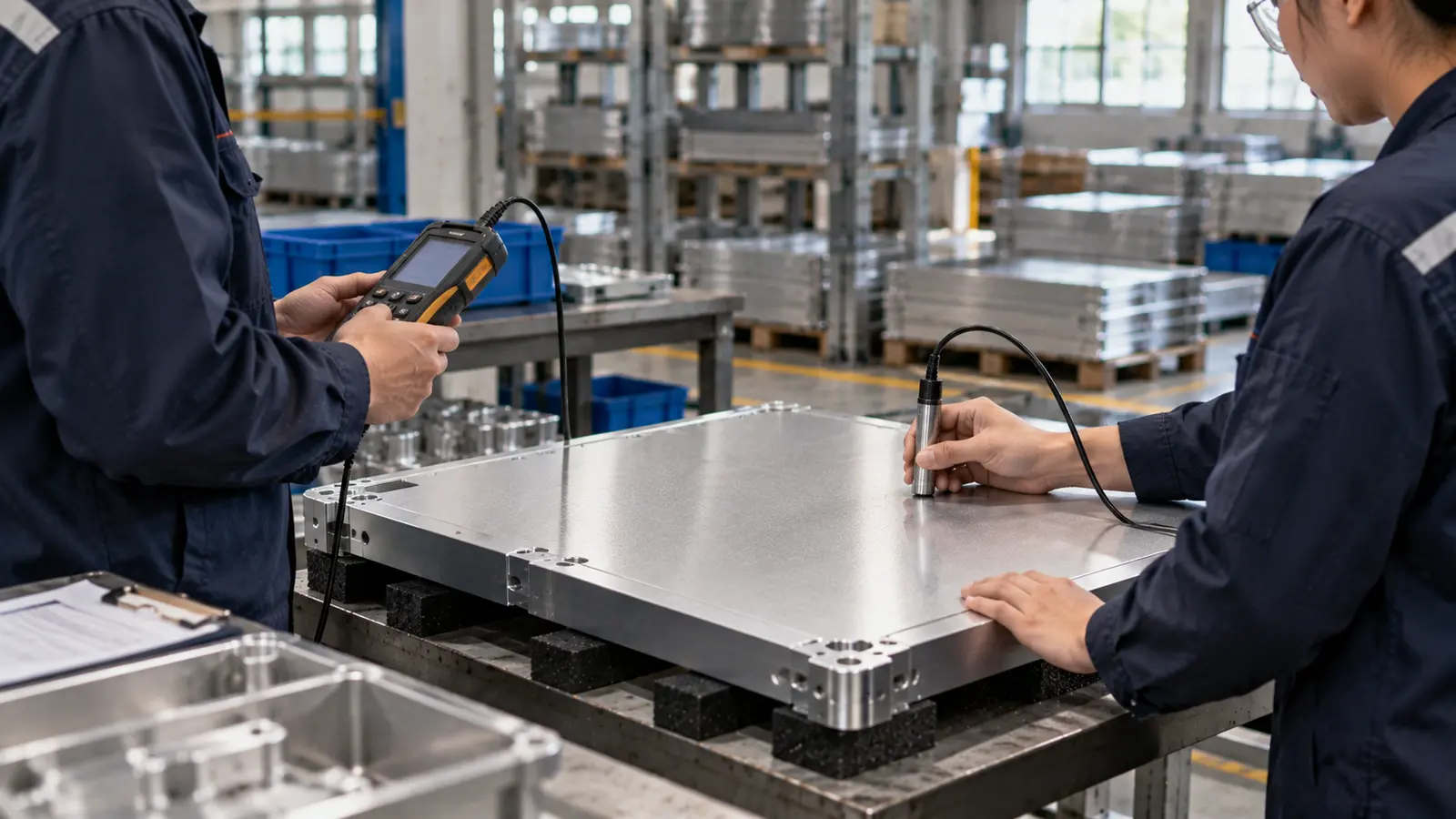

Eddy current thickness testing

Best for non-destructive shop-floor confirmation of anodic coating thickness.

Cross-sectional microscopy

Useful when exact thickness matters and destructive testing is acceptable.

Seal quality testing

If you need to evaluate not just whether the part is anodized, but whether it is properly sealed, ASTM B680 covers seal quality of porous anodic coatings by acid dissolution.

Stain resistance and coating mass tests

Standards such as ASTM B136 and ASTM B137 are also used in anodize evaluation programs, especially for higher-specification work.

For most OEM buyers and engineers, the right sequence is still visual inspection, conductivity testing, and thickness measurement if needed.

When Visual Inspection Is Not Enough

Visual inspection is not enough when the finish affects performance, compliance, or downstream manufacturing. If the part needs electrical grounding, adhesive bonding, sealing, wear resistance, or incoming quality verification, relying on appearance alone is risky.

This matters especially in these cases:

• electrical contact points where anodized surfaces can interfere with grounding
• bonding and sealing where anodized and sealed surfaces behave differently from bare aluminum
• cosmetic product programs where finish consistency across batches matters
• incoming supplier quality where the drawing calls for anodize and the finish must be verified
• rework or refinishing where anodized parts respond differently to polishing, blasting, repainting, or re-anodizing

This is one reason OEMs often prefer integrated suppliers that control machining, finishing, assembly, and final inspection rather than splitting those processes across unrelated vendors. If you are managing parts from prototype through production, Meco’s whole product manufacturing model reduces those gaps.

Why Finish Identification Matters for OEMs

For OEMs, identifying anodized aluminum correctly is not just a technical exercise. It affects design intent, product performance, and supply chain control.

• It affects grounding and conductivity. Anodized surfaces are insulating, which can create issues in electromechanical products if contact areas are not planned properly.
• It affects assembly and bonding. Different finishes change how adhesives, sealants, and coatings interact with the surface.
• It affects wear and service life. Type II and Type III anodize perform differently from bare aluminum or painted finishes in wear-critical areas.
• It affects rework decisions. An anodized part may need different stripping, masking, or re-finishing treatment than painted aluminum.
• It affects supplier verification. If your print calls for anodize, you need a repeatable way to verify what you received.

This is where combining custom CNC machining, finishing, and assembly under one partner can reduce uncertainty and improve accountability.

Common Mistakes When Trying to Identify Anodized Aluminum

Several shortcuts can lead to wrong conclusions.

• Assuming colored aluminum is always anodized. Paint and powder coat can create similar colors.
• Assuming metallic appearance proves anodize. Clear anodize, bare aluminum, and polished finishes can all look metallic.
• Using only one test. A multimeter test alone may confuse anodize with paint. A visual check alone may confuse clear anodize with bare metal.
• Ignoring alloy and process variation. Different aluminum alloys respond differently to anodizing, and appearance can vary accordingly.
• Using destructive scratch tests on cosmetic parts. If the finish matters, start non-destructively.

Conclusion

If you are trying to tell whether aluminum is anodized, the best approach is to combine appearance, conductivity, and measurement rather than relying on any single clue. Anodized aluminum usually has a more uniform metallic finish than bare aluminum, resists light surface wear better, and has an electrically insulating oxide surface. For higher-confidence verification, eddy current thickness measurement is the most practical next step.

For OEM teams, finish identification matters because it affects grounding, bonding, wear performance, quality control, and supplier acceptance. That is especially true when clear anodize is involved, since it can look deceptively similar to untreated metal.
