Medical Device Prototyping to Production: Materials, Processes & Quality

Medical device prototyping is the structured process of transforming a concept into a physical, testable component that can be evaluated for form, fit, function, and manufacturability before committing to production tooling and volume manufacturing. In CNC machining for medical devices, prototyping serves a dual role: it validates the design against engineering requirements and it proves that the chosen manufacturing process can hold the tolerances, surface finishes, and material properties the device demands.

The transition from prototype to production is where most medical device programs encounter their greatest risk. A prototype that works in the lab does not automatically translate into a part that can be manufactured at scale with repeatable quality, full traceability, and regulatory-grade documentation. According to the FDA's device development process framework, the preclinical prototype stage is intended to establish feasibility before any human use, and the manufacturing methods used at this stage directly influence how efficiently a device can transition through design verification, validation, and design transfer into commercial production.

This article covers the complete journey from medical device prototype to scaled manufacturing, including the CNC processes used at each stage, the materials specified for implants and instruments, the role of micro machining in minimally invasive devices, and the quality documentation required to move from first article to production launch. It is the second article in a four-part series on medical manufacturing. For a broader overview of processes, materials, and partner selection, see the pillar guide on medical CNC machining.

What Is Medical Device Prototyping?

Medical device prototyping is the creation of early-stage physical models of a medical device that are used to test, validate, and refine the design before it enters regulated manufacturing. Unlike consumer product prototyping, where appearance and basic function may be sufficient, medical device prototypes must often replicate the mechanical properties, dimensional accuracy, and material behavior of the final production part because clinical and regulatory decisions depend on them.

The FDA's five-stage device development process begins with discovery and concept, progresses through preclinical research and prototype development, and culminates in regulatory review and post-market surveillance. At every stage after concept, the fidelity of the prototype directly determines what can be tested, what can be submitted to regulators, and how quickly the device can reach patients.

For CNC machined medical devices, the prototype is not an approximation. It is a precision-manufactured component that serves as the design verification artifact, the process capability proof, and in many cases the actual device used in bench testing, biocompatibility evaluation, and simulated-use studies. This is why the choice of medical device prototype manufacturer matters as much at the earliest stages as it does during volume production.

How Does Medical Device Prototyping Differ from Standard Prototyping?

Medical device prototyping differs from general industrial prototyping in three fundamental ways: material fidelity requirements, documentation expectations, and the regulatory consequences of process decisions made during the prototype phase.

Material fidelity is non-negotiable for functional prototypes. A consumer electronics prototype can be 3D printed in PLA to test form factor and assembly fit. A surgical instrument prototype that will undergo simulated-use testing must be machined from the same grade of stainless steel (316L per ASTM F138, or 17-4 PH) that will be used in production, because material properties affect sterilization behavior, fatigue life, and surface finish. An implant prototype that will be submitted for biocompatibility evaluation under ISO 10993 must be manufactured from the exact production-intent material, using the exact production-intent process, because the surface characteristics created by CNC machining differ from those created by additive manufacturing.

Documentation starts at the prototype stage, not at production launch. In medical device development, every prototype build generates records that become part of the Design History File (DHF). Dimensional inspection data, material certificates, process parameters, and deviation records from prototype builds are referenced during design verification and validation submissions. A prototype built without traceable documentation may need to be rebuilt entirely to satisfy regulatory requirements.

Process decisions made during prototyping constrain production. If a prototype is machined on a 5-axis CNC mill and the production plan calls for a 3-axis mill with manual repositioning, the dimensional results will not match. The FDA and notified bodies expect that the manufacturing process used to produce verification and validation samples is representative of the production process. This principle, known as design transfer, means that a medical device prototype manufacturer must either use production-equivalent processes from the start or plan a formal re-validation when processes change.

What Are the Stages of Medical Device Prototyping?

Medical device prototyping follows a structured progression in which each stage increases in fidelity, precision, and documentation. The table below summarizes the five standard prototype stages and the CNC manufacturing considerations at each.

The critical transition point is between beta prototype and pilot build. This is where the design freezes, verification and validation testing occurs, and the manufacturing process must demonstrate statistical capability. A medical device prototype manufacturer that has been involved from the alpha stage understands the design intent, has optimized the CNC programming for the part geometry, and can transition to pilot build without the re-learning curve and quality risk that comes from switching suppliers mid-program.

Why Is CNC Machining the Preferred Method for Medical Device Prototypes?

CNC machining is the preferred prototyping method for functional medical device components because it produces parts in production-intent materials with production-representative tolerances, surface finishes, and mechanical properties. This alignment between prototype and production is critical for medical devices because regulatory submissions depend on test data generated from representative samples.

The comparison table below illustrates why CNC machining outperforms other prototyping methods for medical applications where functional testing and regulatory submission are the objectives.

3D printing, including metal 3D printing and plastic 3D printing, has a valuable role in early-stage concept validation and form-factor testing. But for the beta prototype and pilot build stages where dimensional data, material properties, and surface characteristics must match production intent, CNC machining is the required process.

This is especially true for implant prototypes. An orthopedic bone screw prototype 3D printed in titanium powder has a fundamentally different grain structure, fatigue behavior, and surface morphology than the same screw CNC turned from wrought Ti-6Al-4V ELI bar stock per ASTM F136. If the verification test data was generated on a printed prototype but production uses turned bar, the data may not be transferable, which means re-testing at significant cost and schedule impact.

For plastic medical components where volumes eventually justify tooling, CNC machining often serves as the bridge production method while plastic injection molding tooling is developed in parallel. This hybrid strategy is common for disposable housings, drug delivery components, and diagnostic cartridges. For a detailed explanation of the molding process, see What Is Plastic Injection Molding?

What Is Medical CNC Turning and Why Does It Matter for Implant Components?

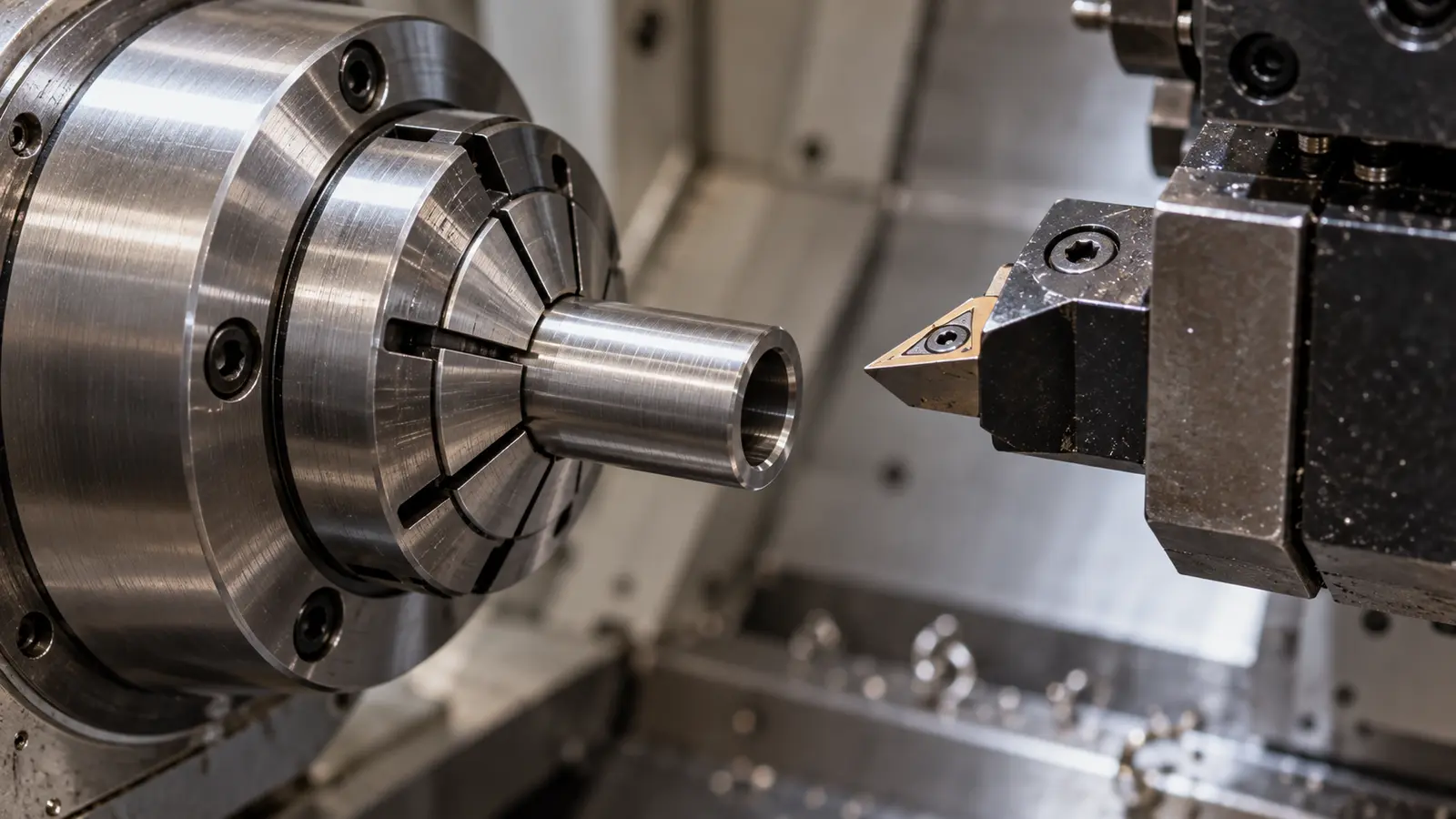

Medical CNC turning is a precision machining process in which a workpiece rotates against a stationary cutting tool to produce cylindrical, conical, and threaded features on implant-grade materials. It is the dominant manufacturing method for axisymmetric medical device components, including bone screws, dental abutments, spinal rods, cannulated pins, catheter shafts, and infusion port housings.

CNC turning achieves concentricity tolerances within ±0.0075 mm, thread form accuracy to class 3A/3B, and surface finishes as fine as Ra 0.2 μm on implant-grade titanium and stainless steel. Swiss-type CNC turning, where a sliding headstock and guide bushing support the workpiece close to the cutting zone, is particularly suited to medical components because it handles the small diameters (often under 10 mm), long length-to-diameter ratios, and tight concentricity requirements that characterize implant fasteners and instrument shafts.

Key Medical CNC Turning Applications

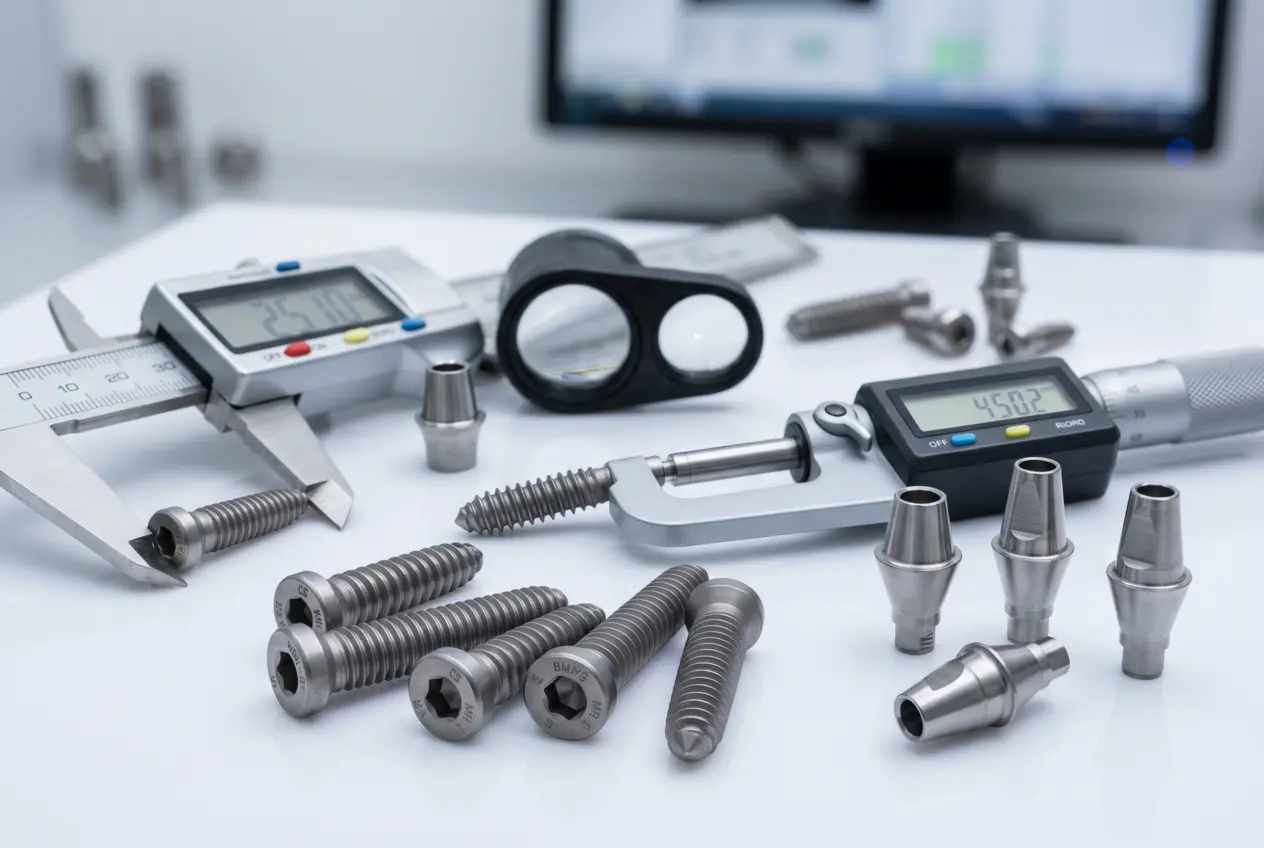

Bone screws and orthopedic fasteners are the highest-volume turned medical components. Self-tapping, self-drilling, cannulated, and locking screws are turned from titanium (Ti-6Al-4V ELI) or stainless steel (316LVM) with thread forms that must promote osseointegration while providing secure primary fixation. Thread pitch accuracy, root radius consistency, and burr-free edges are critical quality attributes that directly affect clinical performance.

Dental implant abutments are precision turned from titanium or cobalt-chrome to connect the implant fixture (embedded in the jawbone) to the prosthetic crown. These components require sub-15 mm diameters, ±0.01 mm tolerances on mating interfaces, and polished surfaces that resist bacterial colonization.

Spinal fixation hardware includes polyaxial screw assemblies, connecting rods, cross-links, and set screws. Rods are typically turned from titanium or cobalt-chrome bar stock, and the concentricity and straightness of the rod directly affect the surgeon's ability to achieve proper spinal alignment during instrumentation.

Catheter tips and endoscopic shaft components are micro-turned from stainless steel or specialty alloys with wall thicknesses sometimes below 0.3 mm. These components bridge the boundary between standard CNC turning and medical micro machining.

What Is Medical Micro Machining?

Medical micro machining is the manufacture of miniaturized components with features below 0.5 mm using specialized CNC equipment, tooling, and process controls. It serves the growing segment of minimally invasive medical devices where smaller instruments, thinner catheters, and more compact implantable electronics require parts that push beyond the capabilities of standard CNC machining centers.

According to Acrotec MedTech, micro manufacturing encompasses a range of high-precision techniques that enable miniature components for advanced medical technology, and the trend toward device miniaturization is accelerating across nearly every surgical specialty.

Micro Machining Capabilities for Medical Devices

Minimally invasive medical components such as trocar tips, guidewire housings, micro-cannulae, and endoscopic biopsy tool components are the primary applications for medical micro machining. The challenge is not just achieving small feature sizes but maintaining surface integrity, burr-free edges, and dimensional consistency on parts where even a 10 μm deviation can affect device function or patient safety.

Medical micro parts manufacturing often combines Swiss-type CNC turning with micro milling, micro drilling, and laser processing in a single production cell. This integrated approach reduces handling (which is itself a contamination and damage risk at micro scale) and maintains positional accuracy across all features.

What Materials Are Used in Medical Device CNC Machining?

Materials for CNC machining medical devices are selected based on the device classification, patient contact duration, mechanical loading environment, and sterilization method. The material must be machinable to the required tolerances and surface finishes, and it must meet biocompatibility requirements under ISO 10993 if the device contacts tissue or blood.

For a comprehensive reference of materials by machining process, see the materials section of the medical CNC machining guide. The table below focuses specifically on the materials most relevant to medical device prototyping and production transitions.

A critical consideration in medical device prototyping is material grade traceability. Every bar of titanium or stainless steel used in a prototype destined for verification testing must be traceable to a mill certificate that confirms chemical composition, mechanical properties, and compliance with the relevant ASTM specification. This requirement applies even at the alpha prototype stage if the data will be referenced in a regulatory submission. Meco provides full material certifications with Certificates of Analysis (CoA) for every production and prototype lot.

For a deeper discussion of plastic material selection in medical applications, including PEEK machining parameters and biocompatibility under ISO 10993, see the companion article on medical plastics machining.

How Does Design Transfer Work in Medical Device Manufacturing?

Design transfer is the formal process of converting a finalized medical device design into a documented, validated manufacturing process that can produce the device reproducibly at commercial scale. It is the highest-risk phase in medical device development because it requires proving that the production process, operated by production personnel, using production equipment and materials, consistently produces output that meets all design specifications.

The FDA's Quality System Regulation (21 CFR 820.30(h)) and ISO 13485:2016 both require documented design transfer procedures. For CNC machined medical devices, design transfer encompasses several critical activities.

Process Validation (IQ/OQ/PQ)

Process validation for medical CNC machining follows the standard three-phase framework used across regulated manufacturing, as outlined in the FDA's Process Validation guidance. Installation Qualification (IQ) confirms that the CNC machine, tooling, fixtures, and inspection equipment are installed and calibrated correctly. Operational Qualification (OQ) confirms that the process operates within defined parameters and produces output within specification across the expected range of operating conditions. Performance Qualification (PQ) confirms that the process, running under production conditions, consistently produces parts that meet all acceptance criteria over a statistically meaningful number of consecutive runs.

For a CNC turning process producing titanium bone screws, PQ might require three consecutive production runs of 50 or more parts each, with Cpk values of 1.33 or greater on all CTQ dimensions, zero defects on thread form, and 100% material traceability verified. This level of process capability evidence is what separates a validated medical manufacturing process from a general-purpose CNC shop that can make the same part but cannot prove it can make it the same way every time.

Documentation for Design Transfer

The documentation package for a CNC machined medical device design transfer typically includes the final engineering drawing (with all GD&T callouts), the CNC program and revision history, tool lists and fixture drawings, the process control plan (identifying CTQ parameters, inspection methods, sampling plans, and reaction plans), the process FMEA (risk analysis of all failure modes in the machining and finishing sequence), validated inspection methods (gauge R&R for all measurement systems), and the Design History File (DHF) that traces the complete design evolution from concept through verification and validation.

Meco's IATF 16949:2016 quality system includes APQP (Advanced Product Quality Planning), PPAP, PFMEA, SPC, and control plan methodology. These tools were developed for the automotive industry but apply directly to medical device design transfer. They provide the structured framework for documenting process capability, managing change, and ensuring that every production part is traceable from raw material through final inspection and delivery.

What Does CNC Machining in Medical Device Manufacturing Look Like at Scale?

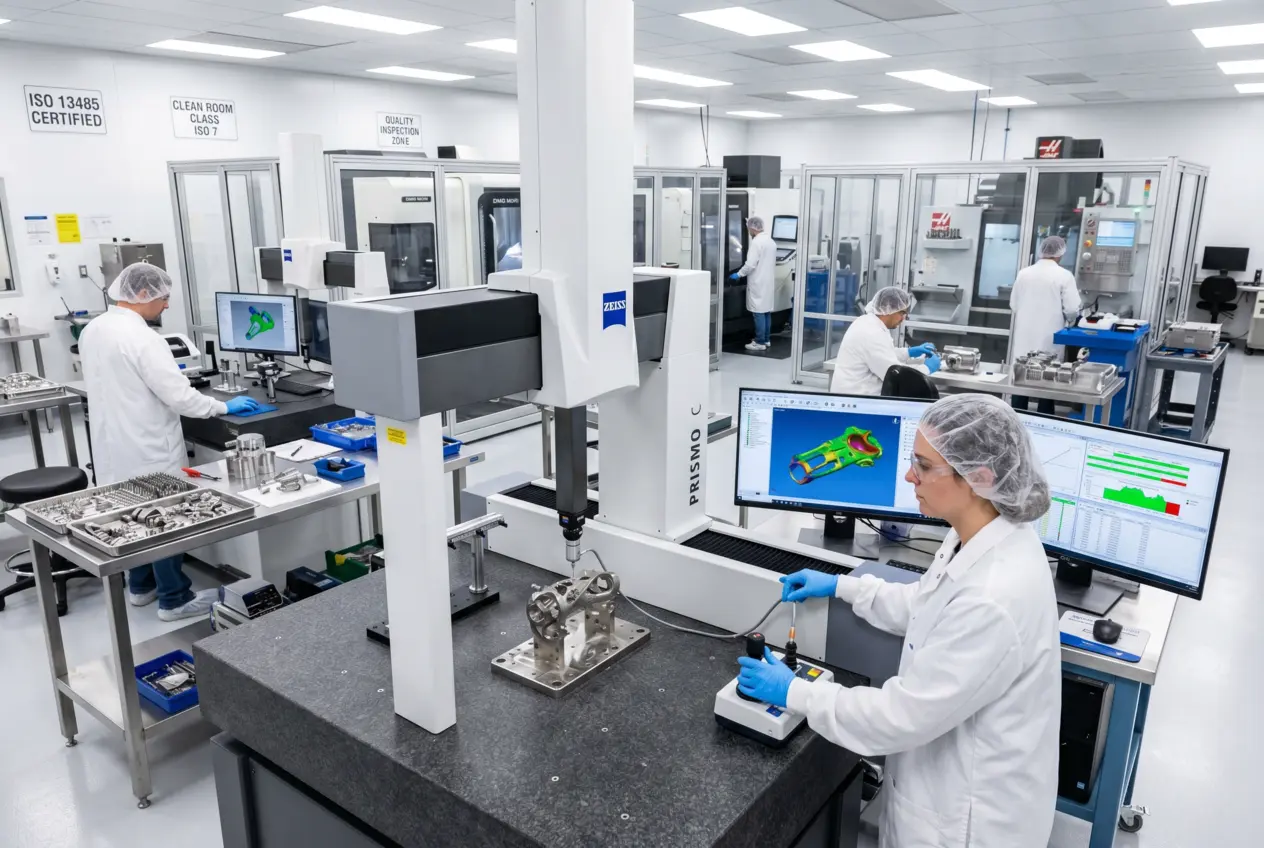

Precision medical device manufacturing at scale requires maintaining the same dimensional control, surface finish quality, and documentation rigor across thousands or tens of thousands of parts that was demonstrated during the pilot build on a sample of dozens. The challenges multiply as volumes increase because tool wear, thermal drift, material lot variation, and operator variability all introduce potential sources of deviation.

The table below summarizes the key differences between prototype-stage and production-stage CNC machining for medical devices.

For medical OEMs, the most efficient path from prototype to production is to work with a single manufacturing partner that can support all stages. Meco's R&D engineering team supports product development from initial DFM analysis through prototyping, pilot build, and production launch. The same CNC equipment, quality system, and engineering team that produced the prototype produces the production parts, which eliminates the process re-qualification risk that arises when transferring a program from a prototype shop to a production facility.

What Quality Documentation Is Required for Medical Device CNC Machining?

Quality documentation for CNC machining medical devices serves two purposes: it demonstrates to regulators that the manufacturing process is capable and controlled, and it provides traceability in the event of a field corrective action or recall. The specific documentation requirements vary by device classification and regulatory pathway, but the following elements are expected for any CNC machined medical component.

First Article Inspection (FAI) documents the complete dimensional inspection of the first production parts, verifying that every drawing dimension, tolerance, and surface finish specification has been measured and recorded.

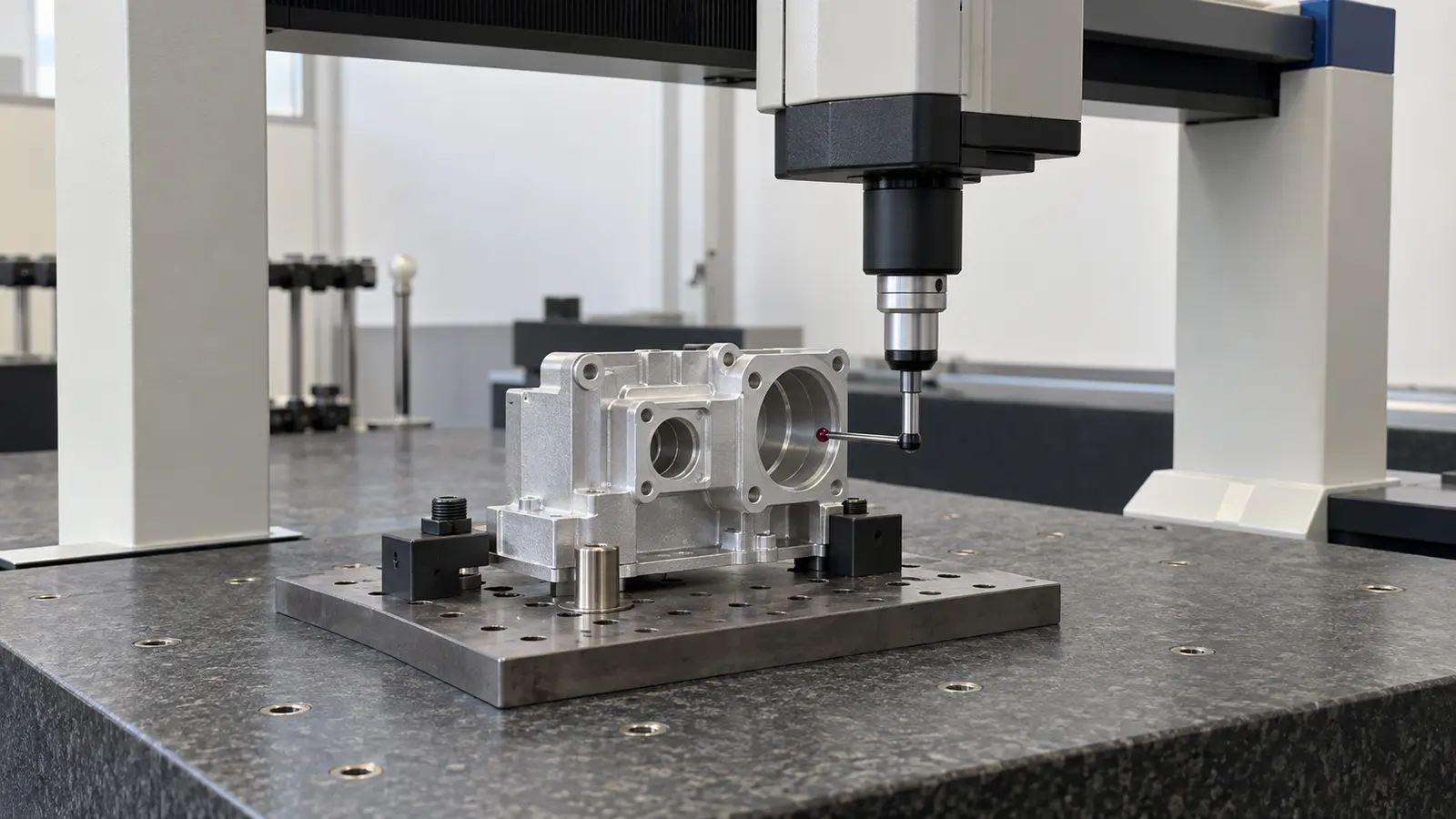

CMM inspection reports provide coordinate measurement data on critical dimensions. Medical device OEMs typically require CMM measurement at ±0.002 mm precision with full uncertainty analysis.

Material certifications and Certificates of Analysis (CoA) trace every raw material lot to the mill source and confirm compliance with the applicable ASTM, ISO, or EN specification.

PPAP submission provides a comprehensive evidence package including dimensional results, material certs, process flow diagrams, control plans, PFMEA, gauge R&R studies, and process capability data (Cpk).

Lot traceability records connect every finished part to its raw material lot, machining program revision, CNC machine ID, operator, inspection results, and shipping documentation.

Meco's medical equipment manufacturing programs are supported by the full IATF 16949:2016 quality infrastructure, including APQP, PPAP, SPC, PFMEA, FAI, CMM inspection, NDT (ultrasonic, dye penetrant, X-ray), REACH and RoHS compliance, CTQ reporting, and conflict minerals reporting. This quality system delivers a 99.99% quality rate and 99.8% on-time delivery across all medical and non-medical programs.

How to Choose a Medical Device Prototype Manufacturer

Selecting a medical device prototype manufacturer is a strategic decision that affects the entire program timeline because the prototype partner often becomes the production partner. Switching manufacturers after the pilot build stage triggers re-validation requirements that can add months and significant cost to the program. The following criteria should guide the evaluation.

Process continuity from prototype to production. The manufacturer must be able to produce the same part, on equivalent equipment, with the same quality system, from first prototype through commercial volume. This eliminates the design transfer risk that arises from splitting prototype and production across different facilities.

Material sourcing and traceability infrastructure. Implant-grade materials require mill certificates traceable to specific heats and lots. The manufacturer must have established supply chains for ASTM F136 titanium, ASTM F138 stainless steel, and other medical-grade substrates, with incoming material inspection procedures that verify compliance before machining begins.

Multi-process capability. Medical devices rarely consist of a single CNC machined component. A spinal fixation system includes turned screws, milled plates, surface finished and passivated components, laser-marked parts, and assembled kits. A manufacturer with integrated capabilities across CNC machining, surface finishing, and mechanical assembly reduces the number of transfers and the associated quality risks.

DFM expertise applied from the first prototype. Design for manufacturability feedback at the concept stage prevents costly redesigns later. Experienced medical machining partners identify geometry simplifications, tolerance relaxations on non-CTQ features, and material substitutions that reduce cost and improve yield without affecting device performance.

Scalable capacity with no minimum order quantities. Medical programs start with 1 to 5 prototype parts and may scale to tens of thousands annually. The manufacturer must handle both extremes without requiring a change in process, quality system, or point of contact. Meco supports production from 10 pieces to 10 million+ with no MOQ, delivering prototype parts in 1 to 2 weeks and scaling through a structured workflow with DFM feedback, sample verification, and production launch under a single point of accountability.

What Role Does Surface Finishing Play in Medical Device Production?

Surface finishing is a critical post-machining step for CNC machined medical devices because it directly affects biocompatibility, sterilization effectiveness, corrosion resistance, and fatigue life. The finish applied during prototyping must match the finish specified for production, because surface characteristics influence verification and validation test results.

Passivation is required for virtually all stainless steel medical components. The process removes free iron and contaminants from the surface and enhances the chromium oxide layer that provides corrosion resistance. Passivation per ASTM A967 or ASTM A380 is a standard callout on surgical instrument and implant component drawings.

Electropolishing removes a thin layer of surface material through controlled anodic dissolution, producing a smoother, cleaner surface than mechanical polishing alone. It is specified for implant surfaces where reduced bacterial adhesion and improved fatigue life are required. Electropolished surfaces can achieve Ra below 0.1 μm.

Anodizing is applied to aluminum housings, instrument handles, and non-implant structural components. Meco's surface finishing services include Type II and Type III anodizing per MIL-A-8625, along with passivation, plating, painting, powder coating, and PVD.

For medical device prototypes specifically, the surface finish must be specified on the engineering drawing and applied during prototype builds that generate verification test data. A prototype that is tested without the production-intent surface finish may produce misleading results for fatigue, biocompatibility, or corrosion testing, requiring re-testing on properly finished samples. Once individual components are machined and finished, the next phase is device-level assembly and packaging, covered in the companion article on medical device assembly automation.
