METAL/PLASTIC PRODUCTS

Features:
a) Agricultural machinery parts
b) Aluminum: ADC12
c) By high pressure die casting
d) CNC machining applied
e) Impregnation(porous sealing) process applied
f) Leak test applied
g) X-ray or CT test, per DBL 4949 or ASTM E505

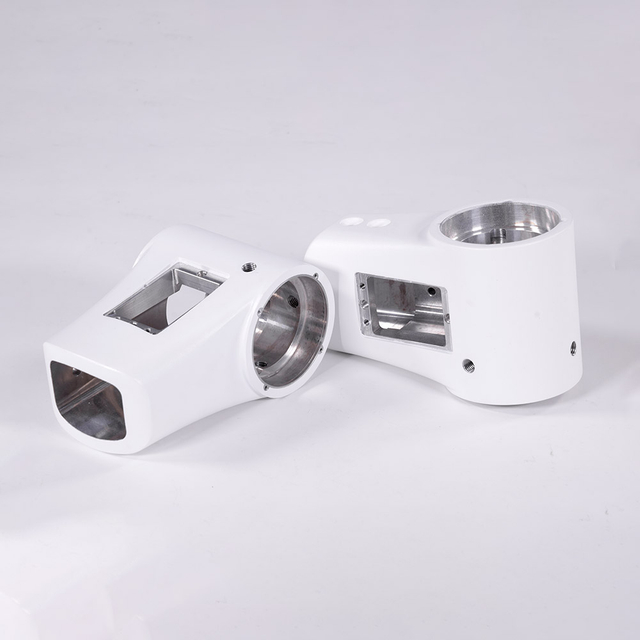

Features:

a) Appliance parts
b) Aluminum: 6061 T6, 6063 T5
c) By extrusion
d) CNC machining applied
e) Powder coating finish
f) Film thickness test, UV test, Salt spray test applied

Features:

a) ODM parts, design involved and DFM provided
b) Material: SS304
c) Process included: investment casting, CNC machining and welding
d) Function test, noise test
e) low tooling cost input

Features:
a) Agricultural machinery parts
b) Aluminum: ADC12
c) By high pressure die casting
d) CNC machining applied
e) Impregnation(porous sealing) process applied
f) Leak test applied
g) X-ray or CT test, per DBL 4949 or ASTM E505



Features:
a) Automotive parts
b) Aluminum: A380.0
c) By high pressure die casting
d) CNC machining applied
e) Impregnation(porous sealing) process applied
f) Leak test applied
g) X-ray or CT test, per DBL 4949 or ASTM E505



Features:
a) Diesel engine parts
b) Aluminum: A380.0
c) By high pressure die casting
d) CNC machining applied
e) Impregnation(porous sealing) process applied
f) Leak test applied
g) X-ray or CT test, per DBL 4949 or ASTM E505



Process:
Sheet metal can be cut and formed into almost any shape we desired.
Our process for sheet metal fabrication including:

a) cut/punching/blanking
b) bending
c) deep drawing
d) Laser cut/Water jet cutting/Plasma cutting
e) NC punch
f) NC bending

Material for the workpiece we work with：

Aluminum
Brass
Bronze
Copper
Nickel
Stainless steel
Steel
Tin
Titanium
Zinc
Per the quantity require, we choose to do progressive die or singe die.


Process introduction:

The injection molding process requiresan injection molding machine,plastic particles, and a mold. The plastic is melted in the injection molding machine and then injected into the mold, where it cools and solidifies into the final shape. See below picture for greater details.
Our plastic part developing process：

Customer's request, could be as below:
a) complete design, 3D and 2D drawing;
b) a draft
c) a sample
b) an idea

What our engineer do:
a) Part design/optimizing
b) Reverse engineering
c) CAE, mold flow analysis report
d) Material election/recommendation
f) Mold layout, with gate,overflow,ejector pins, parting line illustration
g) full demensional report, test set up and part validation




Process introduction:

Aluminum extrusion process is to put the Aluminum blank bar into the mold cavity with the desired structure, under  a certain pressure and speed, forcing the blank get to flow, extrusion from the specific die hole in the cavity, so as to obtain the required section shape and size, and has a certain mechanical properties by the extrusion process aforementioned.

Below is our standard process steps:

a. Extrusion die : Polish and clean the die, spray sufficient elease agent on the die. This step is critial to minimum the extrusion marks along the extrusion direction.
b. Die set up : Locate the extrusion die  to the port of the extrusion equipment by bolts.

c. Raw material pretreatment: aluminum alloy ingots heated to 360℃ to 380℃, and put into the squeezing cylinder of the extrusion equipment.

d. Extrusion: the extrusion device in the extrusion equipment is pushed to the extrusion die at the speed of 0.2m/min to 0.3m/min, so that  the aluminum alloy ingot gets squeezed, makes the  ingot get through the die hole of the extrusion die, and forms an extrusion profile.

e. Traction:  the traction equipment holds the start end of the profile, cowork with the extrusion process to complete the traction.

f. Cut off: cut the profiles at specified length by the cuting machine

g. Heat treatment: we genrerally do below 3 types of heat treatment: Solution treatment,ageing treatment,quenching treatment.

h. Anodizing: as per the cutting timing, we can do pre-anodizing on long extrusions,(up to 6m) or finish anodizing on finished Aluminum parts; as per the anodizing technology: we do Chromic acid anodizing (MIL-A-8625 Type Ⅰ), Sulfuric acid anodizing (MIL-A-8625 Type Ⅱ) and hard anodizing(MIL-A-8625 Type Ⅲ); as per the color, we can do elctrolytic colouring or dying for Type Ⅱ anodizing.




Process introduction:

The powder coating process is to spray on the surface of the parts with an electrostatic spray machine. Under the work of static electricity, the powder will be uniformly adsorbed on the surface of the workpiece to form a powder coating layer. The powder is cured by high temperature baking and leveling, so that different spraying effects are obtained by using different powder.

Our treatment process:

Degreasing->Rinsingg->Rinsing(pure water best)>nano-oxide film->Rinsing->Pure water rinsing>Drying >Painting

Characteristic:

a) Free phosphate and nickel and chromium heavy metals. （RoHs/CALIFORNIA PROP. 65 COMPLIANT)
b) Almost no sediment during the process, which reduces the waste water treatment and environmental burden.

Powder coating effect: we can do satin, semi-matte, matte, sand grain, hammer grain, crack grain and other different effects.

Our standard test:

a) Salt spray test
b) Impact test
c) Bending test
d) Cross-cut test, adhesion test
f) Pencil hardness test
g) Color difference/chromatic aberration detection
h) Gloss check
i) Thickness test

Additional test per customer's request:
a) RoHs test
b) UV test
c) Damp heat test
d) Xenon lamp test, Florida exposure test
